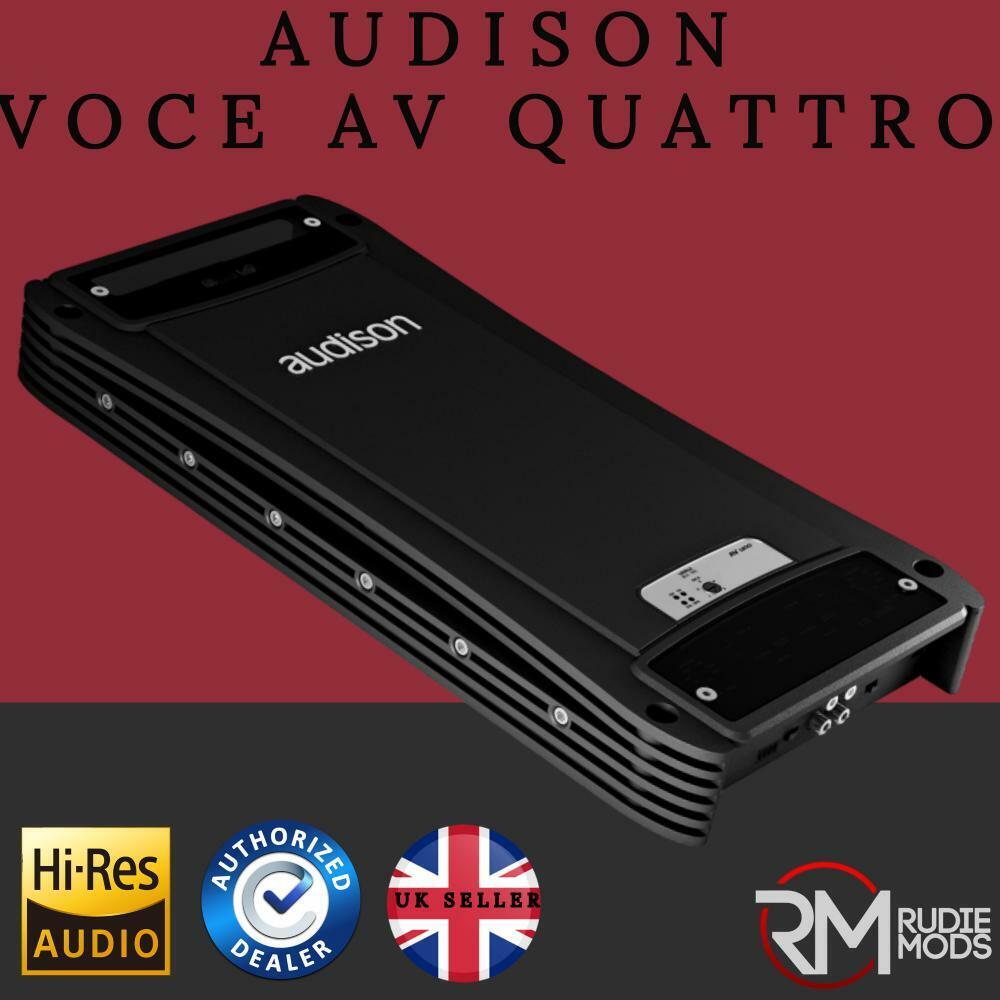

Audison AV Quattro Voce 4-Channel AMP 800Watts Car Amplifier Authorised Dealer

Audison AV Quattro Voce 4-Channel AMP 800Watts Car Amplifier Authorised Dealer

AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 1700 W (RMS) power total.It is designed to handle complex configurations as front/rear and multi-channel systems. AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different coloured LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isn't available from the source; up to 24 dB/Oct. slope crossovers allow to build front-rear, front-sub or multi-amplified systems while still ensuring a non-filtered output signal to expand the system.

Power Output

Load Imp.

4 Channels

3 Channels

2 Channels

4 Ohm

120 W x 4

120 W x 2 + 400 W x 1

400 W x 2

4/2 Ohm

120 W x 2 + 200 W x 2

-

-

2/4 Ohm

-

200 W x 2 + 400 W x 1

-

2 Ohm

200 W x 4

POWER SUPPLY

Power supply voltage: 11 ÷ 15

VDC Idling current: 1.8 A

Idling current when off: 0.02

mA Consumption @ 14.4 VDC (Max Musical Power): 55 A

AMPLIFIER STAGE

Distortion - THD (1kHz @ 4Ω): 0.04 %

 Bandwidth (-3 dB): 4 ÷ 60k Hz

 S/N ratio (A weighted @ 1V): 100 dBA

 Damping factor (1k Hz @ 4Ω): 100

 Input sensitivity: 0.3 ÷ 5 V RMS

Input impedance: 15k â„¦

Speaker-In sensitivity: 1.4 ÷ 24 V RMS

Speaker-In impedance: 5k Ω

Minimum load impedance: 2Ω

NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ω: 100 W

OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%

 4 Ch: 120 W x 4 (4Ω)

 4 Ch: 200 W x 4 (2Ω)

 4 Ch: 120 W x 2 (4Ω) + 200 W x 2 (2Ω)

 3 Ch: 120 W x 2 (4Ω) + 400 W x 1 (4Ω)

 3 Ch: 200 W x 2 (2Ω) + 400 W x 1 (4Ω)

 2 Ch: 400 W x 1 (4Ω) + 400 W x 1 (4Ω)

Size and weight

Max size (mm/inches): 220 x 470 x 58 / 8,66" x 18,50" x 2,28"

Weight (kg/lb): 7.2 / 15.87

Features

Hi-Res audio

According to the definition of HiRes audio provided by JAS (Japan Audio Society - jas-audio.or.jp), Voce amplifiers exceed the above 40 kHz bandwith analog requirement, providing an astonishing 4 ÷ 60k Hz (@ -3 dB, 2 VRMS, 4 Ω).

THE AV quattro AMPLIFIER PROJECT AV quattro is a four-channel amplifier which can work in four, three, two channel mode, delivering 800 W (RMS) power total. It is designed in order to handle complex configurations as front/rear and multi-channel systems. Inputs and ARTTM ensure interfacing with every type of source; up to 24 dB/Oct. slope crossovers allow to build frontrear, front-sub or multi-amplified systems always having a non-filtered output signal to expand the system. AV quattro also allows you to replace the analog input board with the digital one (AV bit IN).

AUDISON AMPLIFIERS CAN BE PART OF A HIGH POWER AUDIO SYSTEM THAT CAN GENERATE VERY HIGH UNDISTORTED SOUND PRESSURE LEVELS. PLEASE REMEMBER THAT LONG EXPOSURE TO AN EXCESSIVELY HIGH SOUND PRESSURE LEVEL MAY DAMAGE YOUR HEARING; THEREFORE, PLEASE USE COMMON SENSE AND PRACTICE SAFE SOUND.
