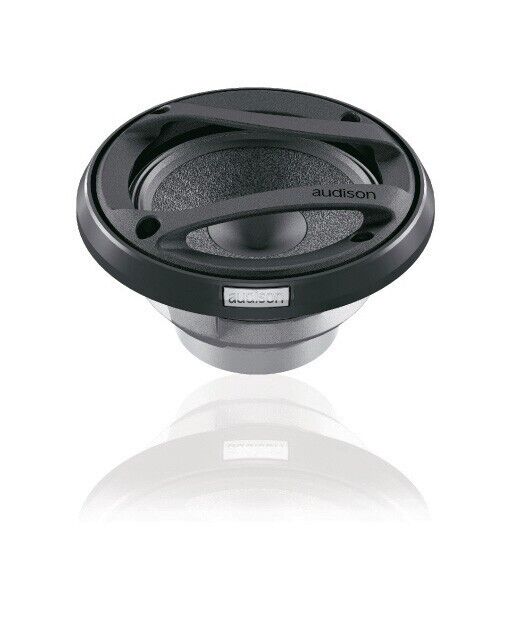

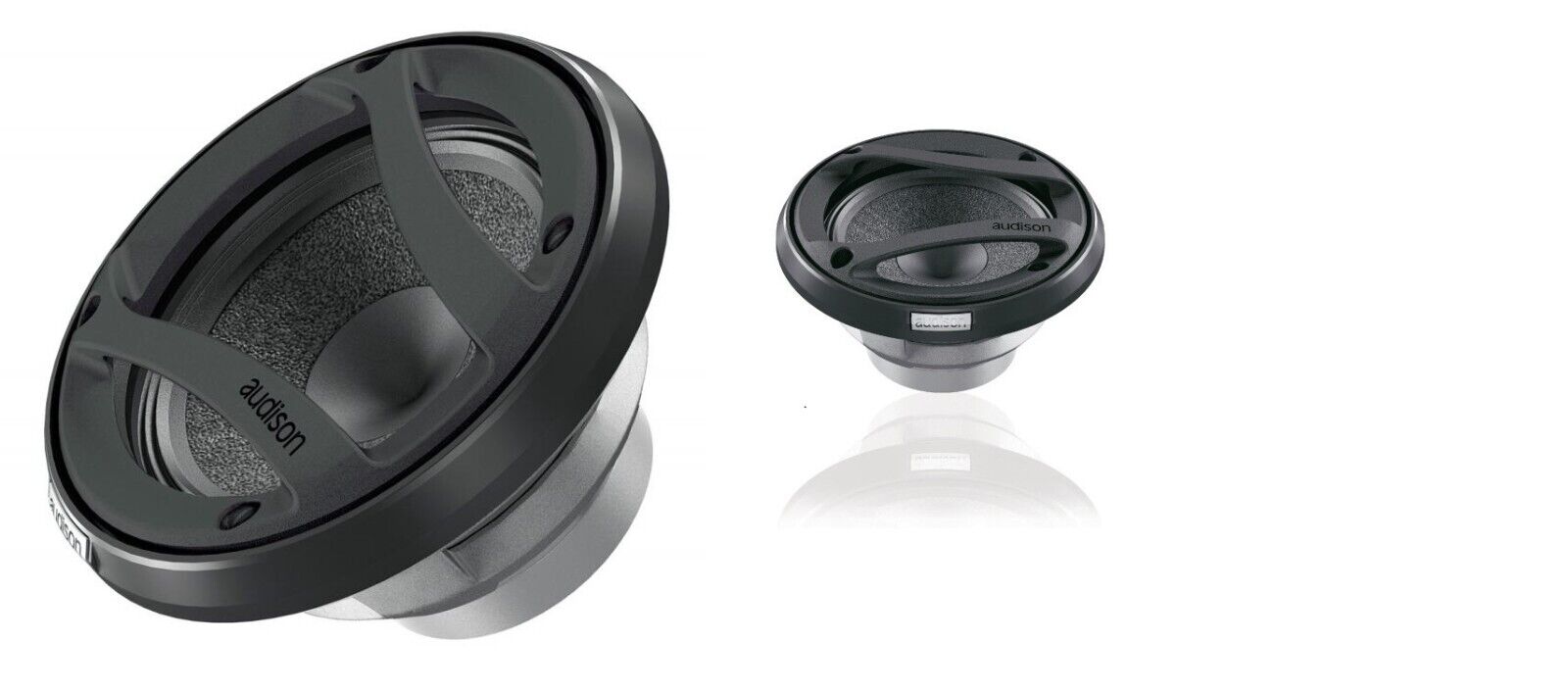

Audison AV 3.0 Mid Range | 100 W Peak Power | 70 mm | 4 ohm

The core of the AV 3.0 midrange is a powerful Neodymium magnetic group: efficiency and linearity make it an irreplaceable component to achieve a fine yet dynamic mid range, while its compact size allows versatile and high-performance installations.

Grille included.

TECHNICAL SPECS

Size70 mm

Power Handling - Peak100 W

Impedance4 Ohm

Frequency Response200 ÷ 14k Hz

Magnet MaterialNEODYMIUM

Voice Coil Ø20 mm

Voice Coil MaterialCCAP - COPPER CLAD ALLUMINIUM RIBBON

Woofer Qes0,74

Xmax2 mm

ELECTRIC-ACOUSTIC SPECS

D66 mm

Re3 Ohm

Fs160 Hz

Vas0.4 l

Mms4.4 g

Cms0.24 mm/N

BL4.1 T•m

Qms4.7

Qts0.64

Le Standard0.12 mH

Le mH @ 10 kHz 0,070.07

Spl93 dB

GENERAL

Weight0.3 kg
