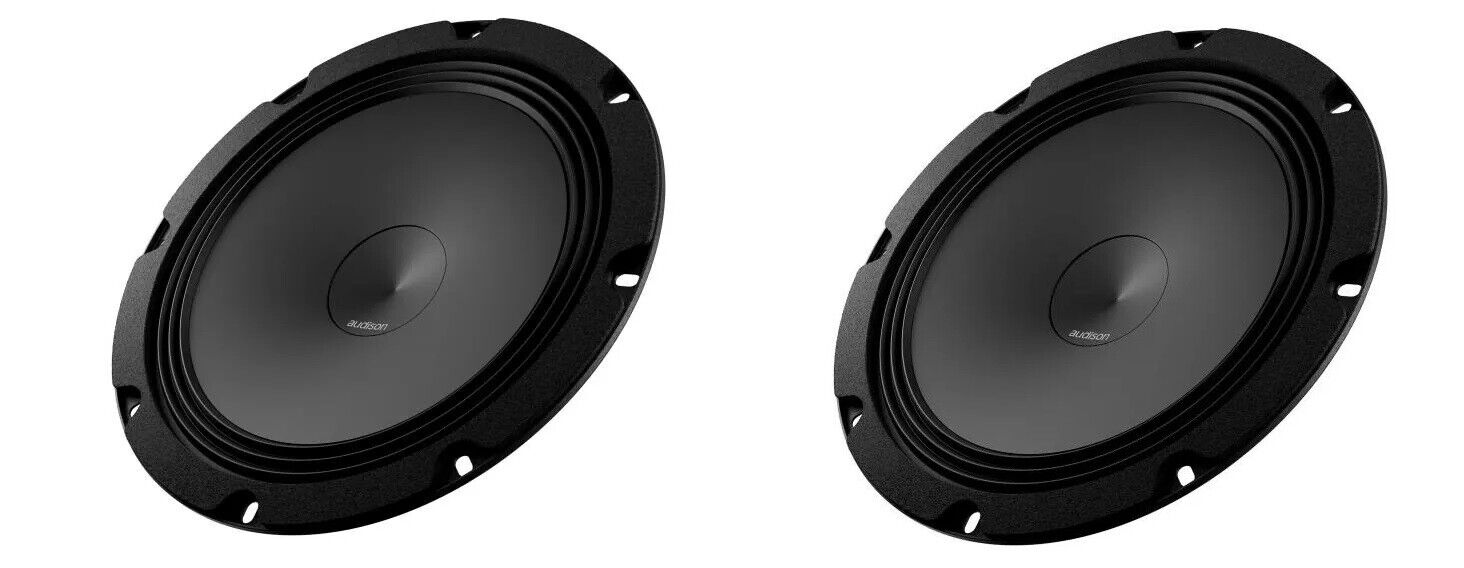

Audison AP 8 Speaker Woofer 300 W Peak Power 8" 200 mm 4 ohm

For the vehicles equipped with an 8 inch woofer as standard OEM component, the Audison Technical Department developed the AP 8 which, also thanks to the wide emission surface, provides higher energy in the low frequency range, ensuring excellent performance when the use of a subwoofer is prohibited due to space limitations.

TECHNICAL SPECS

Size200 mm

Power Handling - Peak300 W

Power Handling - Continuous100 W

Impedance4 Ohm

Frequency Response35 ÷ 3k Hz

Magnet MaterialHIGH DENSITY FLUX FERRITE

Voice Coil Ø25 mm

Woofer Qes0,8

Xmax3.3 mm

ELECTRIC-ACOUSTIC SPECS

D159 mm

Re3.1 Ohm

Fs60 Hz

Vas20 l

Mms19 g

Cms0.35 mm/N

BL5.4 T•m

Qms5

Qts0.7

Le Standard0.3 mH

Spl93.5 dB
