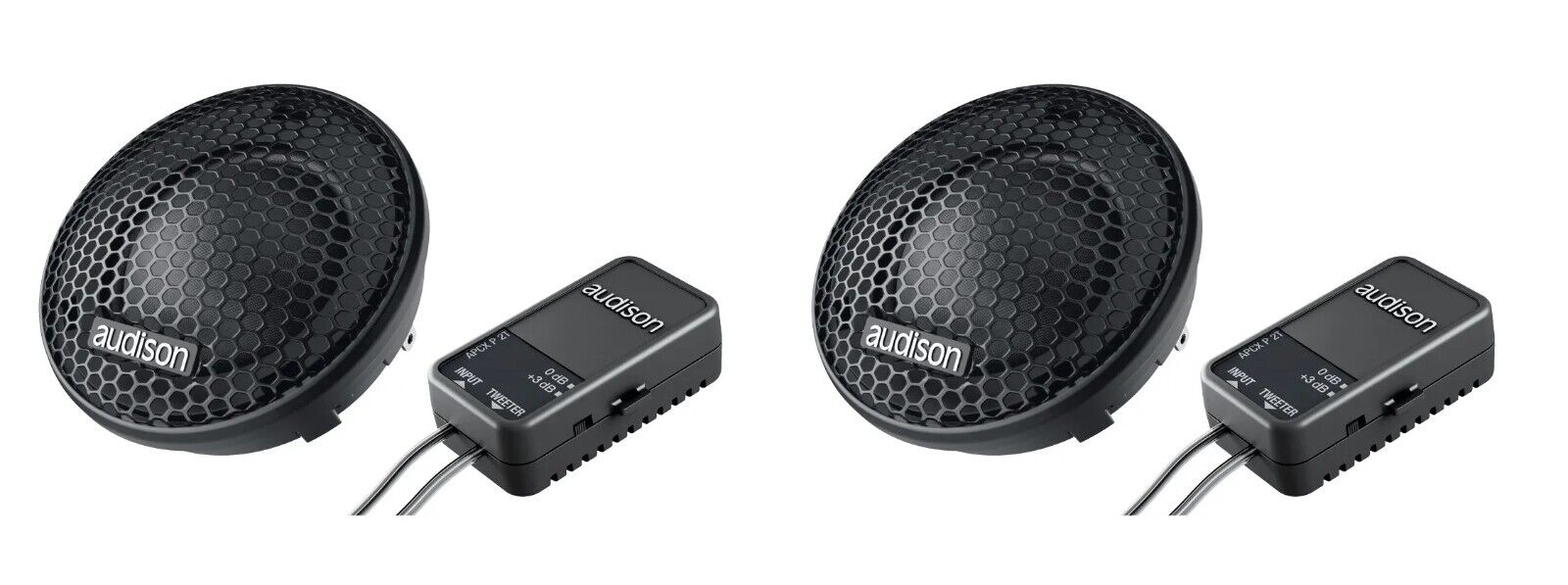

Audison AP 1P Tweeter 150 W Peak Power 29 mm 8 ohm

The exclusive AIF technology (Any Install Faceplate) of the AP 1P Tweeter component provides the installer with three different faceplates for total application versatility and a significant reduction in installation time.

The double Neodymium tablet used in the motor provides an excellent extension in high frequency and together with the 1 in.

CCAW voice coil ensures an outstanding dynamic response. AIF technology, to support OEM integration, provides the specialist with three different types of faceplates:

OEM, for an easy and correct factory placement

Mesh grille: to obtain the best compromise between protection and performance with a-pillar installations.

Spoke grille: for maximum acoustic performance with a-pillar installations

Thanks to the AIF, the AP 1P tweeter expresses its full potential in every application scenario.

It is supplied with three mounting accessories that make the AP 1P install a breeze:

Watch band;

Double-angle cup;

Flush Mounting Ring;

Metal mounting spring

TECHNICAL SPECS

Size25 mm

Power Handling - Peak150 W

Power Handling CrossoverHi-pass filtered @2.5 kHz 12dB/oct

Impedance8 Ohm

Frequency Response1,2 ÷ 25k Hz

Crossover nameAPCX P 2T

Crossover TypeHigh Pass 12 dB/oct.

Crossover point4 kHz

Crossover adjustmentTweeter Level: 0 / +3 dB

Magnet MaterialNEODYMIUM

Voice Coil Ø25 mm

Woofer Qes1.74

Dome MaterialTELOTON FIBRE

ELECTRIC-ACOUSTIC SPECS

D29 mm

Re5.75 Ohm

Fs1600 Hz

Mms0.23 g

Cms0.05 mm/N

BL2.7 T•m

Qms4

Qts1.21

Le Standard0.04 mH

Spl92 dB

GENERAL

Weight0.067 kg

Crossover Weight0.065 kg
