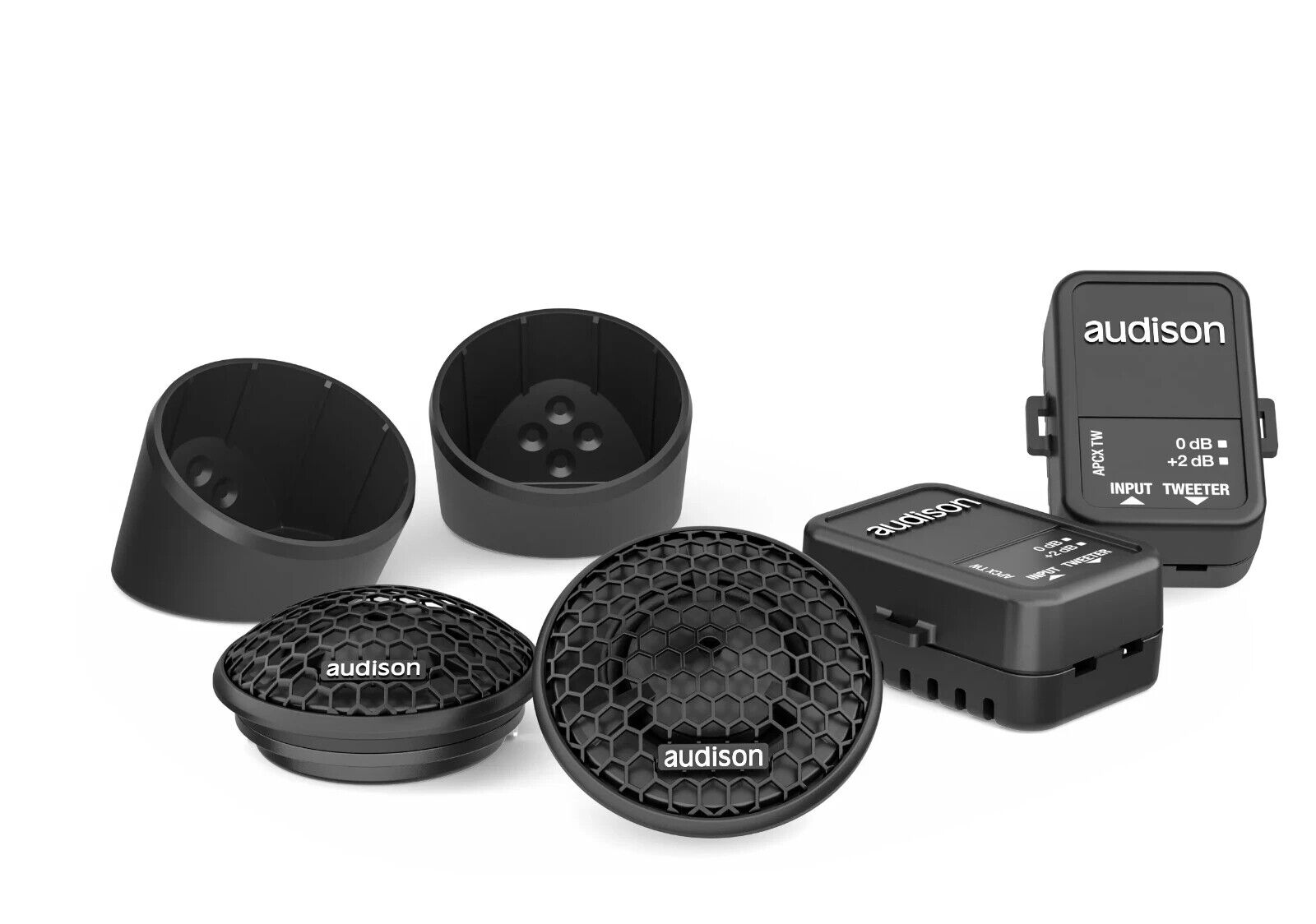

Audison AP 1 Tweeter 150 W Peak Power 26 mm 4 ohm

Tweeter ' 150 W Peak Power ' 26 mm ' 4 ohm

The AP 1 tweeter features an innovative design. The 26 mm diaphragm, combined with a wide external suspension, actively contributes to the overall emission, providing the ability to increase sound pressure while lowering the resonance frequency, all with extremely low moving mass.

The powerful motor is characterized by a large Neodymium magnet.

TECHNICAL SPECS

Size26 mm

Power Handling - Peak150 W

Power Handling CrossoverHi-pass filtered @ 3,5 kHz - 12 dB Oct

Impedance4 Ohm

Frequency Response2k ÷ 20k Hz

Magnet MaterialNEODYMIUM

Voice Coil Ø20 mm

Woofer Qes2,78

Dome MaterialTELOTON FIBRE

ELECTRIC-ACOUSTIC SPECS

D27.5 mm

Re3.5 Ohm

Fs1500 Hz

Mms0.16 g

Cms0.09 mm/N

BL1.3 T•m

Qms1.5

Qts0.98

Le Standard0.02 mH

Spl93 dB

GENERAL

Weight0.04 kg

Crossover Weight0.04 kg
