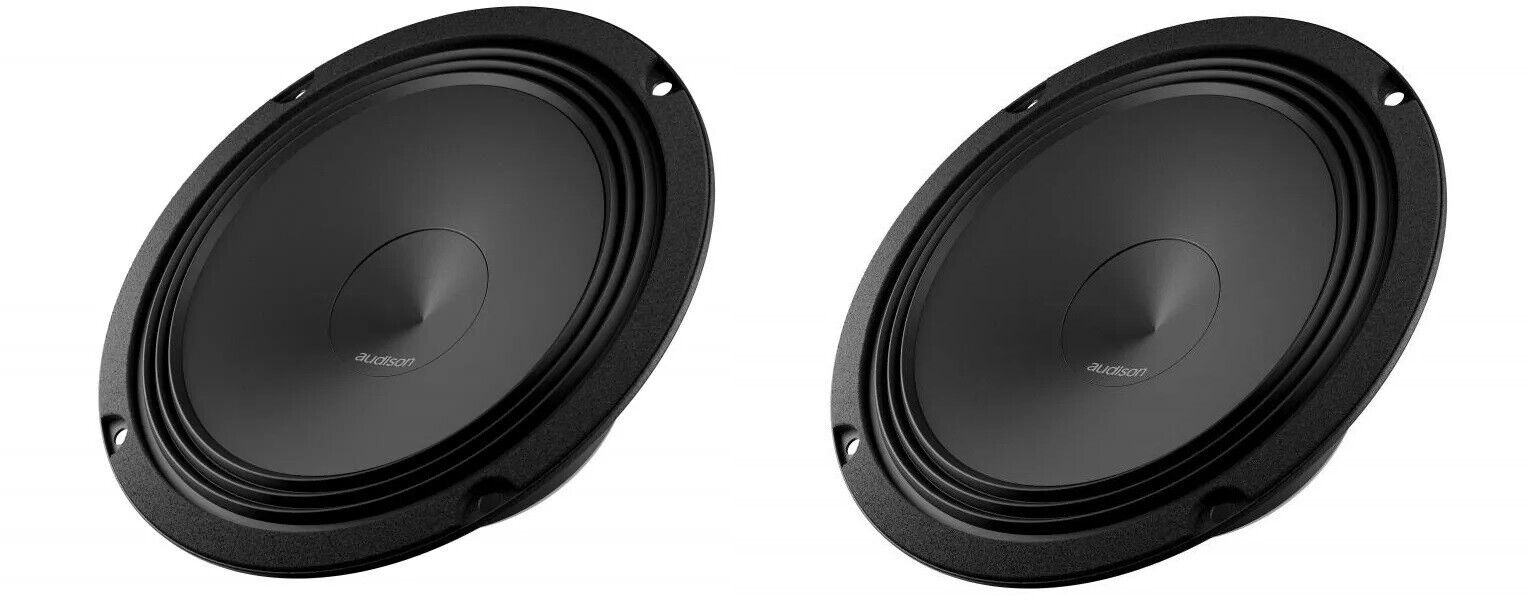

Audion AP 6.5 Speaker Woofer 210 W Peak Power 165 mm 4 ohm

AP 6.5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.

All the woofer don't employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R & D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency.

The surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.

TECHNICAL SPECS

Size165 mm

Power Handling - Peak210 W

Power Handling - Continuous70 W

Impedance4 Ohm

Frequency Response60 ÷ 5k Hz

Voice Coil Ø32 mm

Woofer Qes0,8

Xmax2.5 mm

ELECTRIC-ACOUSTIC SPECS

D129 mm

Re3.1 Ohm

Fs80 Hz

Vas7.6 l

Mms12 g

Cms0.31 mm/N

BL4.7 T•m

Qms4.7

Qts0.7

Le Standard0.23 mH

Spl93.5 dB
