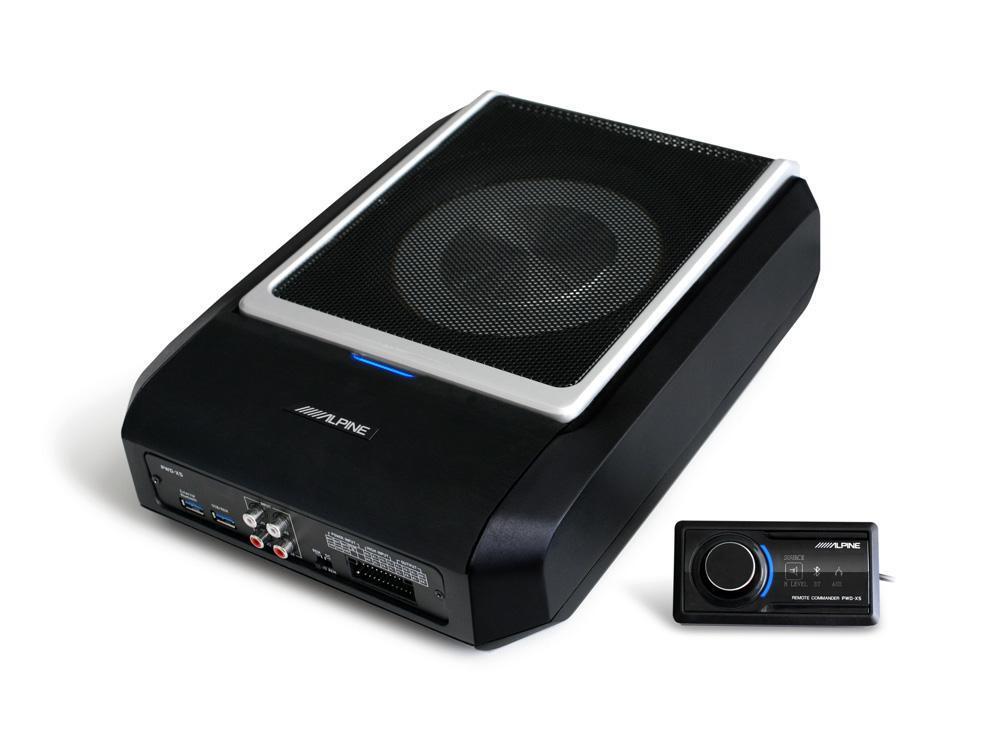

Alpine PWD-X5 Active car subwoofer with 4 channel DSP amplifier and remote

ALPINE PWD-X5

4.1 Channel Digital Sound Processor (DSP) with Powered Subwoofer - PWD-X5Achieving a perfectly integrated, high-performance car audio installation with only one device is now possible with the new Alpine PWD-X5.

This very unique sound system upgrade product includes a high-performance Digital Sound Processor (DSP), 4-channel amplifier for your front and rear door speakers, as well as an ultra-flat active subwoofer. The small footprint allows the PWD-X5 to be easily installed inside the car’s cabin to enjoy a nice bass upgrade. Connect either OEM radios via high-power speaker level inputs or aftermarket radio via RCA inputs, and control the system through the wired remote control and the convenient smartphone app.

This product is perfect for customers that look for a big improvement of their car’s sound quality, without installing many different devices and routing cables all across their car.

The PWD-X5 comes with a full wiring kit including high-qulaity power cables (4.5 meters) with main fuse.

If your original car stereo does not feature Bluetooth audio streaming, the PWD-X5 is yet again a great solution for you.

With the included Bluetooth dongle that can be plugged in to one of the USB ports on the DSP amp you can stream music from your smartphone to the PWD-X5.

Simply pair your phone and select Bluetooth as a source in the wired remote controller to enjoy all your music, Spotify and internet radio on your sound system.

The remote controller is also INCLUDED

Technical Specifications

Power output:Rated power: 25W*4+165W;Peak power: 50W*4+240WSignal-to-noise ratio: ≥80dBBass boost: -12dB~+12dBFrequency response: 20Hz~20KHzInput impedance: Low-level input: 20KΩ; high-level input: 100ΩPhase selection: 0°/180°Remote ON: DC high-level /REM input activationOperating temperature: -10~60°CStorage temperature: -40~85°CPower source: DC 14.4V (9V~16V) negative groundActivate REM input: Options of high-level activation (H1+/H3+) and ACC activation for selectionActivate REM output: +12V activation voltage output (0.5A)Stand-by current: 750mANet weight: 5.35kgMeasurements: 350mm (L) *245mm (W) *80mm (H)

Functional Parameters

Type of input signals: 4-channel high-level, 4-channel stereophonic low-level, BluetoothOutput position: 4-channel amplifier output (4Ω 25W*4)Output signal gain:Master volume: 0~35;Subwoofer volume: 0~15Filter slope:CH1~CH4 6 dB/Oct or 12dB/OctCH5 6/12/18/24dB/OctQ value: 0.404~28.85Delay: 0.000~5.4ms/0.000~187cmPreSets: 15 presets selectable
