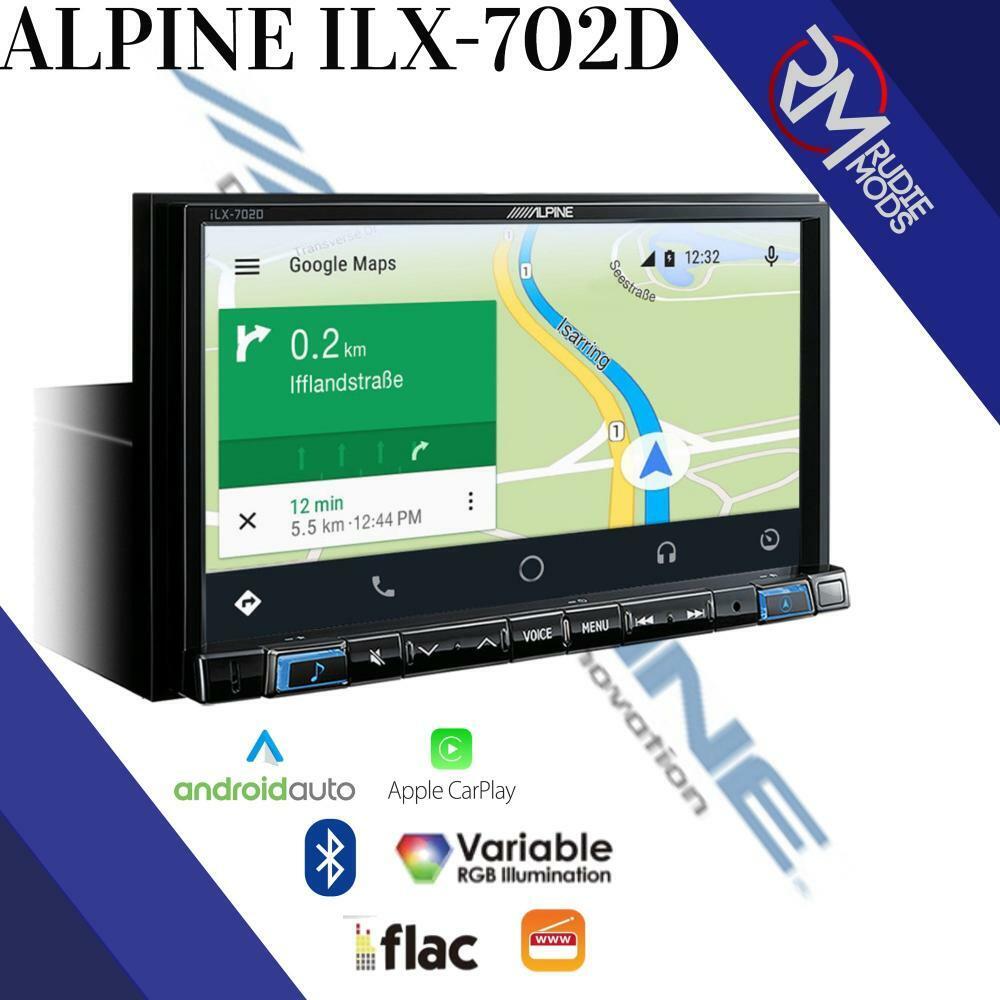

Alpine iLX-702D 7 DAB Bluetooth Apple Car Play Android Auto Mechless Car Stereo

The iLX-702D Digital Media Station brings the latest media compatibility, online navigation capability and Alpine’s audiophile sound quality to your ride. It is fully compatible with the latest smartphones such as the iPhone 7 and the Galaxy S7 and lets you use Android Auto and Apple CarPlay on its 7-inch high-resolution touch screen.

DAB+ digital radio, USB video playback, HDMI connectivity and the latest Bluetooth technology are built-in as well.

You even have several options for navigation: the iLX-702D includes online navigation capability to use Maps with Apple CarPlay and Google navigation with Android Auto. Both Apple CarPlay and Android Auto apps can access the Alpine navigation antenna for highest positioning accuracy

High Resolution WVGA Touch Screen

The 7-inch (17.8cm) high-resolution WVGA display allows full operation of the system via touch-screen technology and features the latest video enhancement technology for outstanding picture clarity, contrast and resolution. This allows online navigation maps to be displayed in stunning detail, while movies or video clips become a real cinematic experience. The user interface is very intuitive and is designed to perfectly integrate into your vehicle. You can choose from a variety of screen colours and designs to best match your taste and vehicle.

7-inch Screen with 1 DIN chassis

More and more vehicles feature a dashboard space for a 7-inch or 8-inch screen, however behind the screen there is no space to fit a full 2DIN product. The new SMART is for example one of the vehicles with such dashboard design. Alpine designed the iLX-702D to overcome this problem by putting a 1DIN chassis in the back of a 7-inch screen. With a car specific Alpine installation kit you can achieve a perfect installation and original manufacturer look.

Works with Apple CarPlay

The innovative iLX-702D with Apple CarPlay compatibility brings you a smarter way to use your iPhone on the road. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use maps, listen to music and access messages with just a word or a touch. You can even enjoy Spotify, internet radio or podcasts while on the road for a truly connected experience. Simply connect your CarPlay enabled iPhone to the USB port of your Alpine and you are ready to go.

Works with Android Auto

Android Auto was designed with safety in mind. With a simple and intuitive interface, integrated steering wheel controls, and powerful new voice actions, it's designed to minimize distraction so you can stay focused on the road. Android Auto automatically brings you useful information, and organizes it into simple cards that appear just when they're needed. Both Apple CarPlay and Android Auto can access the navigation antenna of the iLX-702D for highest accuracy when using the navi apps.

DAB+ Digital Radio

The built-in DAB/DAB+/DMB tuner uses the most advanced digital technology to deliver radio reception in outstanding, noise-free sound quality. DAB+ also offers many other advantages over traditional FM radio: select from a much wider range of radio stations and after an initial station scan you can easily select your desired channels from an alphabetic and genre list of available stations.

Connect USB and HDMI Sources

You can connect USB sticks and portable hard drives to playback audio and MP4 video files. The iLX-702D is also equipped with an HDMI input to connect the optional Alpine DVD player DVE-5300 or any other portable media player with HDMI output. You can also connect your smartphone if an HDMI adapter for your phone model is available to enjoy the video or photo content on the Alpine screen (requires additional cables and adapters). The iLX-702D includes an HDMI output as well to connect a rear monitor system via HDMI.
Note: The HDMI output is a pass-through of the HDMI input and can therefore not be used to output USB video content, Apple CarPlay or Android Auto content.

High-end Sound Tuning Options

The iLX-702D puts the power of advanced sound processing in your car with BASS ENGINE SQ to maximise bass sound and overall tone balance, plus lots of custom tuning functions like Digital Time Correction, Digital X-Over and Dual 9-band Parametric EQ. Best of all, you can set them easily from your smartphone with the Alpine TuneIt App. You also get Media Xpander, 24-Bit DAC and 3 PreOuts (4 Volt) as well.

Hi-Res Audio Playback

This Alpine unit can playback audio files in FLAC format – including 24/96 and 24/192 Hi-Res Audio compatibility.

Online Navigation with Apple CarPlay

When you’re driving, Maps helps you find the way to your destination with turn-by-turn spoken directions and new, easier-to-read visuals. When a turn is coming up, the view zooms in to show you exactly where to go. Along the way, large signs and arrows guide you in the right direction and let you know how long it’s going to take to get there. Looking for a gas station, restaurant, or coffee shop along your route? New buttons on the navigation screen help you quickly find the closest places and estimate how much time the detour will add to your trip. If you push the navigation hard-key on your iLX-702D, you directly active Apple CarPlay navigation without going through many menu points.

Online Navigation with Android Auto

Let Google Maps lead the way. It’s easy to get where you’re going with free voice-guided navigation, live traffic information, lane guidance, and more. Whether on your phone screen or on your car display, Android Auto was designed with safety in mind. With larger touch targets, a simplified interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road. The iLX-702D works seamlessly with Android Auto and Google maps. Android Auto can even access the Alpine navigation antenna for highest positioning accuracy.

GPS and Glonass Compatible

More satellites equal higher navigation accuracy and a faster positioning fix. This Alpine product is compatible with GPS satellite signals and can also receive positioning data from Glonass satellites. This brings big advantages especially in an urban environment with many tall buildings and when driving next to high mountains. When using navigation with Apple CarPlay and Glonass you can benefit from this new improved compatibility.

Built-in Bluetooth® Technology

The built-in Bluetooth® module allows wireless connection of a mobile phone for hands-free communication. A very intuitive user interface makes it very easy to set microphone and speaker volume. It also includes a speed dial function for the most frequently called numbers. Bluetooth® also enables audio streaming from the phone: audio content or even internet radio can be wirelessly transferred to your Alpine unit.

Vehicle Data-Bus Connectivity

If your car is equipped with parking sensors, you can continue to use this convenient function with your iLX-702D. Alpine offers vehicle data-bus interfaces to connect your navigation system to your vehicle. This enables compatibility with your vehicle’s steering wheel control buttons, display of air conditioning settings as well parking sensor display. You can even see navigation turn-by-turn arrows in your multi-function display in the instrument cluster (if the vehicle supports it).

Drive-Assist Cameras

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse, and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles and touch-control from your screen. You can even view the camera screen and parking sensor screen simultaneously.

Favourites

Wouldn’t it be convenient to have an app that shows you all your favourite phone numbers, radio stations, frequent navigation destinations and more on a single glance?! Favourites is just that. Simply hold the audio button for one second to activate the Favourites view and you are ready to go.

Voice Control

Push the VOICE button on your Alpine unit or your steering wheel buttons (if supported) to activate SIRI or OK Google. You can simply call people, enter navigation destinations, write and send messages or simply say the song or playlist you like to listen to – just to name a few examples. This is a very convenient way to control your Alpine system while keeping your eyes on the road.

FEATURES

Tuner

• Memory Presets: Preset Stations (FM: 24 / MW: 6 / LW: 6)
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB Tuner

• DAB+ Tuner Built-in
• DAB+/DMB Supported
• DAB+ Slideshow Service
• DLS (Dynamic Label Service)
• DAB Service Following
• RDS Fallback (where available)
• Service Preset: 18 Preset Memory
• Auto Ensemble/Service Memory
• Service Search Function
• PTY Search Function
• Alphabet Search Function
• Antenna Power Supply Selection

BLUETOOTH®

• Built-in BLUETOOTH® Module
• Wide Band Speech Technology
• HFP (Hands-Free Profile) Compatible
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Individual Profile Connection Hands Free Phone and Music Streaming
• Phone Book: Phone Book Synchronization
• Speed Dial: 4 Preset Memory (per phone)
• Multiple Phone Number Registration: 5 Phone Numbers can be stored for one name
• Device Name Display
• Auto Answer
• Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
• Redial Function
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• DTMF (Touch-Tone) Function
• Signal Strength Indicator
• Battery Level Indicator
• Menu Language Selection: 24 Languages
• Firmware Updatable
• Microphone Included

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: compatible with all models except 1st and 2nd generation iPhone
• Connection: KCU-461iV / KCU-471i Required (Sold separately)
• Music & Video Playback Compatible with KCU-461iV only
• Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook
• Alphabet Search
• Artwork Display
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

Connectivity

• Works with Apple CarPlay (requires CarPlay enabled iPhone)
• Works with Android Auto (Requires Android Auto enabled smartphone)

Navigation Function

• Online navigation capability with Apple CarPlay and Android Auto
• Includes GPS / Glonass enabled navigation antenna
• Direct navigation access key to launch CarPlay or Google maps

USB Media Connection

• USB Connection: USB Extension Cable Included
• Music Playback: FLAC/MP3/WMA/AAC compatible
• Video Playback: MP4 compatible
• File / Folder Name Search
• Tag Info Search
• Folder Up / Down
• M.I.X. Random Play
• Repeat

Sound Tuning

• Bass Engine SQ
• Bass Engine™ Pro
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• 2 V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band Parametric Equalizer front/rear)
• 6 Channel Digital Time Correction
• Digital Crossover Setting
• Customized Sound Setting by Car Type
• MediaXpander HD
• Application Volume Level Setting
• Sound Setting Data Download
• Easy, Step-by-Step Sound Customization
• Alpine TuneIt App ready

General

• Power Output: 4 x 50 W High Power Amplifier
• Advanced Power IC
• Display: 7 inch Capacitive WVGA High Resolution Display
• White LED Backlighting System
• Control Type: Touch, Drag, Flick
• My Favorites Function
• Automatic Setting Change for 2 Users
• High Grade Audiophile Design
• 3 PreOuts (2 V, Front / Rear / Subwoofer)
• AUX-In: 1 A/V AUX Input (3.5mm micro jack)
• Steering Wheel Remote Control Function
• Vehicle Display Interface Ready (UART connection)
• Remote Control Ready
• Navigation Guidance Mix
• Camera Connection & Built-in Controls for Multi-View Cameras
• Camera Guide Line Adjustment
• Rearview Camera Display Automatic Boot-up
• Simple Mode & Info Mode Display Selection
• Visual EQ
• Live Contrast Adjustment
• Menu Language: 24 Languages (for AV / Bluetooth)
• Clock
• Auto Dimmer
• Anti-theft security code
• Firmware Updatable
• Power Antenna Lead
• Remote Turn-On
• HDMI Input (Alpine Special HDMI connector required)
• Engine Start-Stop unaffected
• Ready for optional DVD Player DVE-5300

Installation

• Perfect F.I.T. Kit Solutions available

SPECIFICATIONS

Screen

• Screen Size: 7 inch Capacitive WVGA
• LCD Type: Transparent Type TN LCD
• Operation System: TFT Active Matrix
• Number of Picture Elements: 1,152,000 pixels (800 x 3 x 480)
• Illumination System: White LED Backlighting
• Effective Number of Picture Elements: 99.99%
• Colour System: NTSC, PAL

Max Power Output Ratings

• Max Power Output: 4 x 50 W

FM Tuner

• Tuning Range: 87.5 - 108.0 MHz
• Mono Usable Sensitivity: 8.1 dBf (0.7 µV / 75 ohms)
• 50dB Quieting Sensitivity: 12 dBf (1.1 µV / 75 ohms)
• Alternate Channel Selectivity: 80 dB
• Signal-to-Noise Ratio: 65 dB
• Stereo Separation: 35 dB
• Capture Ratio: 2 dB

MW Tuner

• Tuning Range: 531 - 1,602 kHz
• Usable Sensitivity (IEC Standard): 25.1 µV / 28 dBf

LW Tuner

• Tuning Range: 153 - 281 kHz
• Usable Sensitivity (IEC Standard): 31.6 µV / 30 dBf

USB

• USB Requirements: USB 2.0
• Max. Power Consumption: 1,500 mA (CDP Support)
• USB Class: Mass Storage Class, Play From Device
• File System: FAT 16/32
• MP3 Decoding: MPEG-1/2 AUDIO Layer-3
• WMA Decoding: Windows Media™ Audio
• AAC Decoding: ACC-LC format ′′.m4a′′ file
• FLAC Decoding
• Number of Channels: 2-Channel (Stereo)
• Frequency Response: 5 - 20k Hz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
• Total Harmonic Distortion (at 1kHz): 0.008%
• DynamicRange(at 1kHz): 95 dB
• Signal-to-Noise Ratio: 100 dB
• Channel Separation (at 1kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible navigation antenna included

BLUETOOTH®

• BLUETOOTH® Version: Bluetooth V2.1+EDR
• Output Power: +4 dBm Max. (Power class 2)
• HFP: HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• HSP (Head Set Profile)
• A2DP: A2DP (Advanced Audio Distribution Profile)
• AVRCP: AVRCP (Audio/Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound Tuning

• Subwoofer Level Adjustment: 0 to +15
• Subwoofer Phase Setting: 0° or 180°
• BASS ENGINE SQ: 5Mode, Level 0 to +6
• HighPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• HighPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• HighPassFilter (Gain): -12 to 0 dB
• LowPassFilter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 Hz
• LowPassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
• LowPassFilter (Gain): -12 to 0 dB
• Time Correction: 0.0 - 9.9ms (0.1ms step)
• Dual HD EQ Front + Rear
