Alpine 7” Apple Carplay & Android Auto Headunit INC FREE ALPINE REVERSE CAMERA

7" Digital Media Station, featuring DAB+ Radio, Apple CarPlay and Android Auto compatibility

iLX-W690D

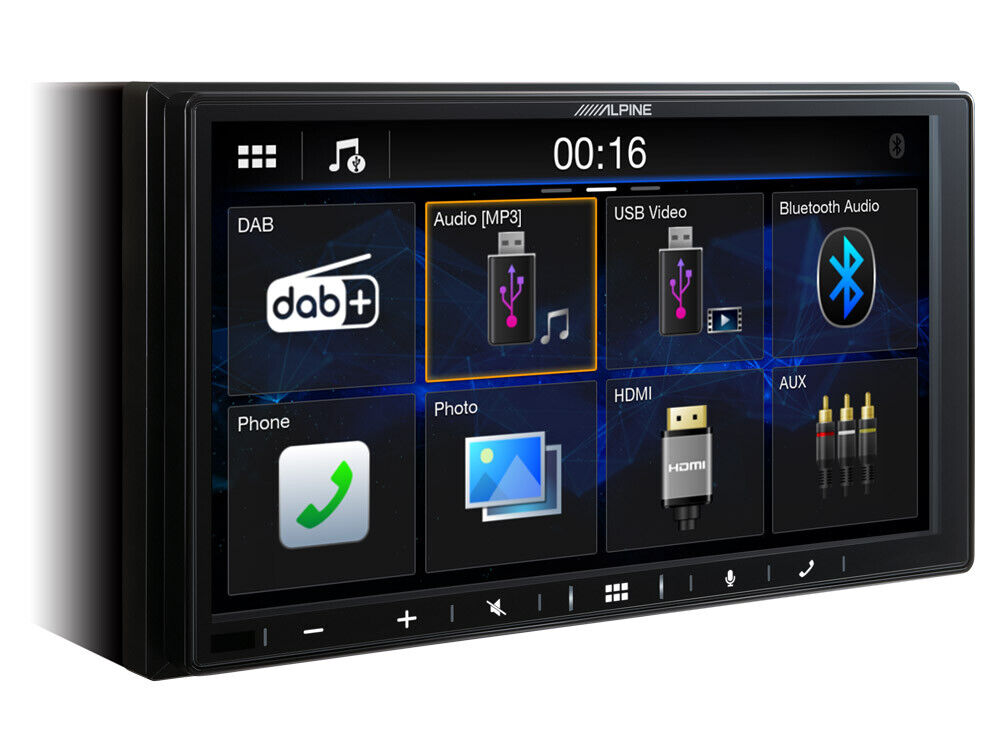

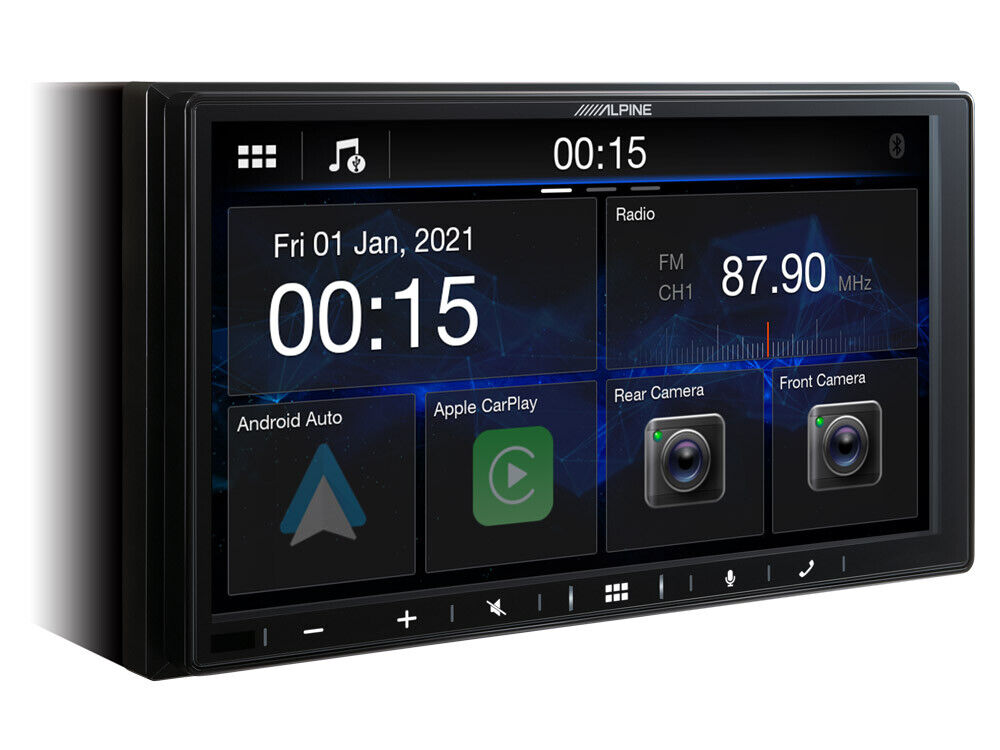

The Alpine iLX-W690D Digital Media Receiver features a 7-inch hi-res capacitive touchscreen, which works perfectly with smartphone connectivity features like Apple CarPlay and Android Auto. It is designed to give smartphone users all features they want and need to enjoy their car rides. The built-in DAB+ digital radio tuner lets you enjoy radio stations in excellent sound quality, while the high-speed charging function for smartphones ensures that your phone battery is rapidly charged. Bluetooth audio streaming allows everyone in the car to contribute with their phones and music to the party on the road.

The unit features a very shallow installation depth of only 6 cm, which allows installation even in vehicles without full DIN-sized installation docks.

You can further upgrade your iLX-W690D with the KTA-450 4-channel Power Pack or KTA-200M Mono Power Pack Amplifier with PowerStack capability, to increase your sound output by five times. Both units can be mounted together, to create a very compact package that can fit into a regular 2DIN space. This Power-Stack design even won a "Best of CES Award 2019".

FEATURES

GENERAL

7-inch capacitive touch screen with swipe graphical user interface

DAB+ Digital Radio Tuner

AM / FM (RDS) Tuner

Preset Stations (FM: 2x6 / DAB: 3x6 / AM: 1x6)

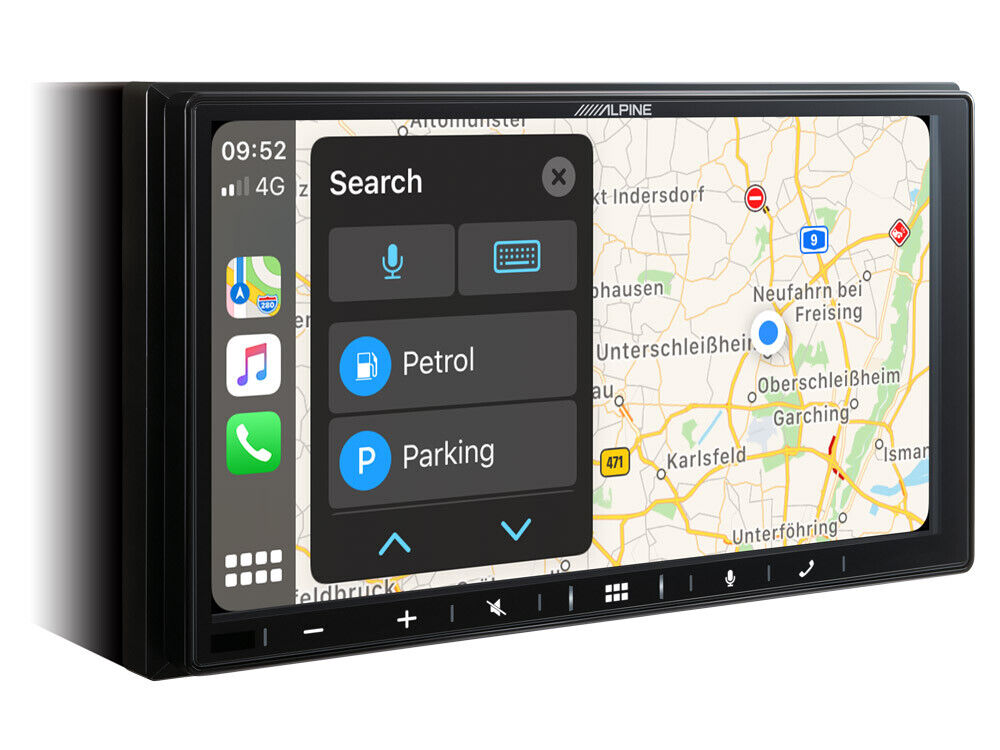

Works with Apple CarPlay

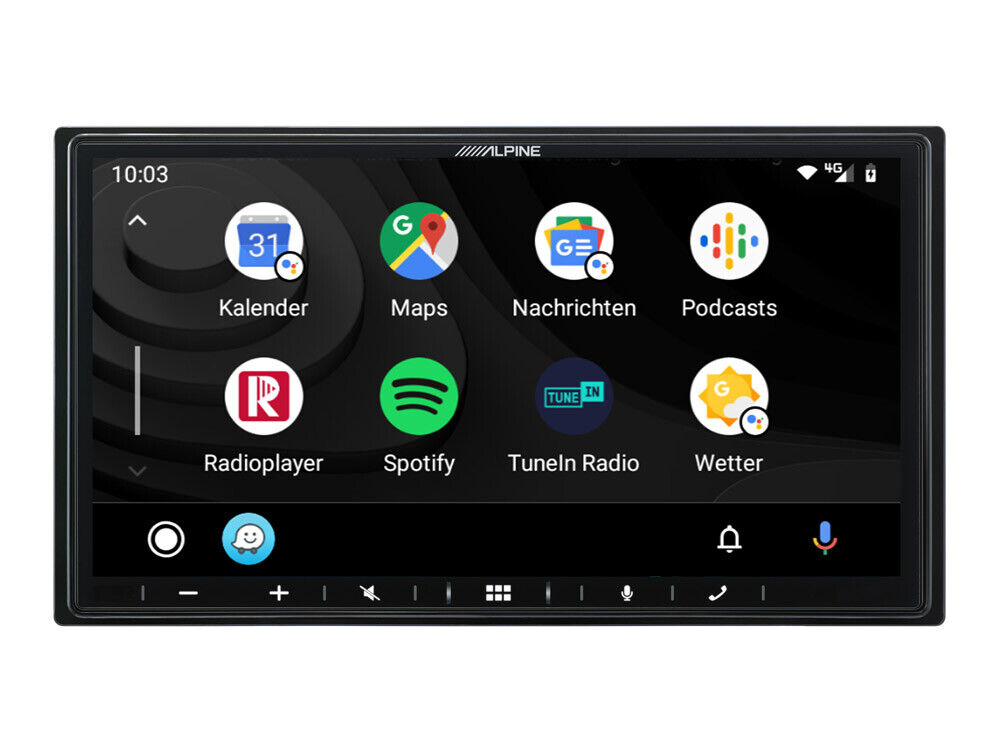

Works with Android Auto

5-Band Graphic EQ

10 EQ Pre-Sets

Digital Crossover

6-Chanel Digital Time Correction

Media Xpander

Independent Source Volume Level Setting

Built-in Bluetooth for audio streaming and hands-free operation

Included microphone

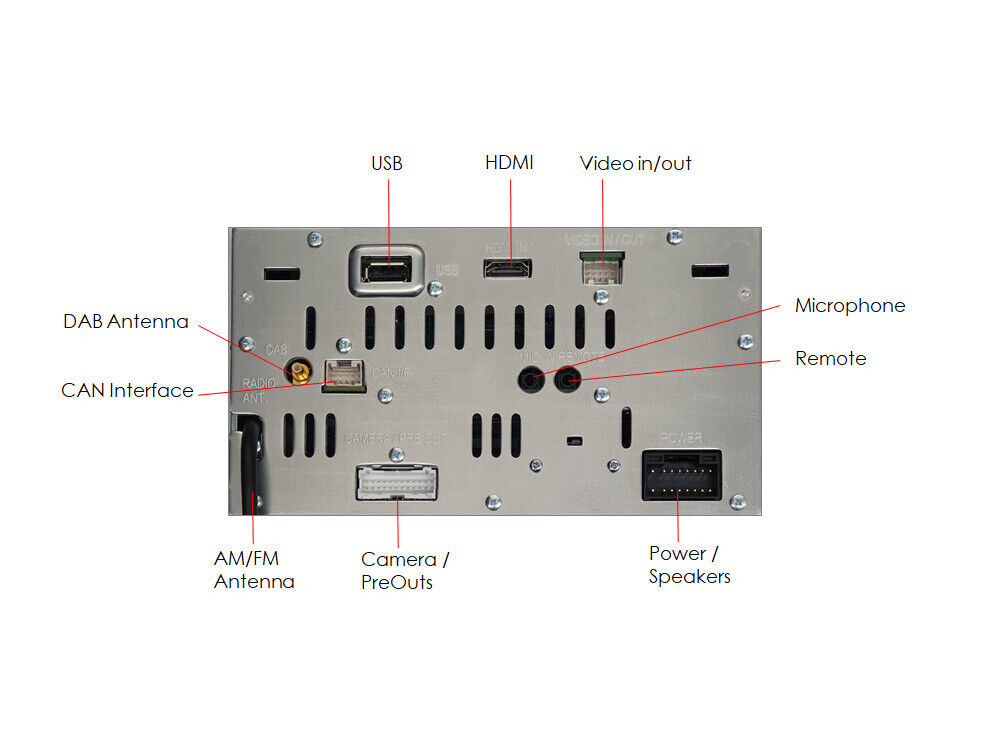

1 A/V AUX Input (RCA)

1 Video Output (RCA)

2 RCA Camera Inputs (front and rear)

HDMI Input

3 PreOuts (4 Volts)

KTA-450 and KTA-200M Power Pack Ready

Built-in Rear USB port

USB video, audio and photo playback

Steering Wheel Remote Control Ready

Remote Control Ready

Various vehicle specific installation kits available

SPECIFICATIONS

MONITOR SECTION

Screen Size: 7 inch

LCD Type: Transparent type TN LCD

Operation System: TFT active matrix

Number of Picture Elements: 1,152,000 pcs. (800 × 480 × 3 (RGB))

Effective Number of Picture Elements: 99% or more

Illumination System: LED

TUNER SECTION

FM Tuning Range: 87.5 - 108.0 MHz

AM Tuning Range: 531 - 1,602 kHz

Signal-to-Noise Ratio: 65 dB

DAB Tuning Range: 174.928 - 239.2 MHz

Usable Sensitivity: -92dBm

Signal to Noise Ratio Band III: 70dB

USB SECTION

USB requirements: USB 2.0

Max. Power Consumption: 1,500 mA (CDP Support)

USB (Play From Device) / USB (Mass Storage Class)

File System: FAT16/32

Dynamic Range: 95 dB (at 1 kHz)

Signal-to-Noise Ratio: 100 dB

WAV / FLAC / MP3 / WMA / AAC Audio Playback (from USB)

MP4 / MOV / AVI / WMV / MPG Video Playback (from USB)

JPG / PNG / BMP Photo Playback (from USB)

HDMI SECTION

Input Format: 720p/480p/VGA

BLUETOOTH SECTION

Bluetooth Specification: Bluetooth V4.1

HFP (Hands-Free Profile)

PBAP (Phone Book Access Profile)

A2DP (Advanced Audio Distribution Profile)

AVRCP (Audio/Video Remote Control Profile)

GENERAL

Power Requirement: 14.4 V DC (11-16 V allowable)

Operating temperature: -20 degree Celsius to + 60 degree Celsius

Power Output: 4x 50 Watts

Weight: 1.0 kg

CHASSIS SIZE

Width: 178 mm

Height: 100 mm

Depth: 60 mm
