Alpine 11" Media Receiver with BT DAB CarPlay Android Auto for VW T6

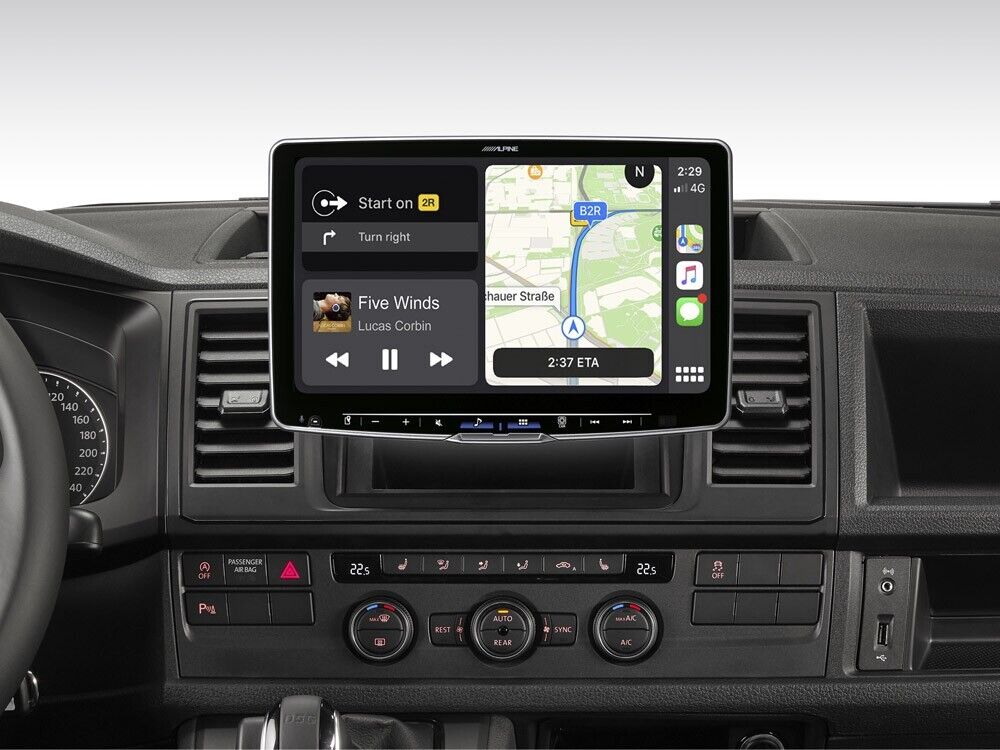

The iLX-F115T6 Alpine Halo11 for the Volkswagen T5 (7H/E/J) model year 09/2009 - 06/2015 and T6 (7H/E/J) model year 07/2016 - 09/2019 and more is a cutting-edge Head Unit, featuring a gigantic 11-inch high-resolution WXGA touch-screen. The iLX-F115T6 comes with all required installation parts (such as a plug-and-play wiring harness, CAN interface, frame, etc.) for the  Volkswagen T6. The super-slim display appears to simply hover over your dashboard and can be adjusted in various ways for the best position.

Enjoy wireless Apple CarPlay and Android Auto (wired) compatibility, DAB+ digital radio, USB video playback, Hi-Res Audio playback, Bluetooth hands-free and audio streaming and much more with this amazing Head Unit.

You can chose from a wide selection of online navigation apps such as Google maps and use them on your Alpine screen through Apple CarPlay and Android Auto.

Bring exceptionally good sound quality into your vehicle: the Alpine Halo11 is the world's first Head Unit featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as 2-way X-overs, a Parametric EQ, 6 Volt PreOuts, digital time correction and much more.

The Alpine Halo series has become one of the world's most popular Head Unit lines and won many industry awards for its outstanding concept and design. We continued to improve upon this successful product and make it even better. The 2nd generation Alpine Halo11 features a XXL 11-inch high-res display, DAB+ digtial radio, Wireless Apple CarPlay, two USB ports, further improved sound quality and tuning options and many more innovations and improvements and is now available as a complete set for the Volkswagen T6. The iLX-F115T6 includes all necessary installation parts and interfaces to fully integrate in the vehicle's system.

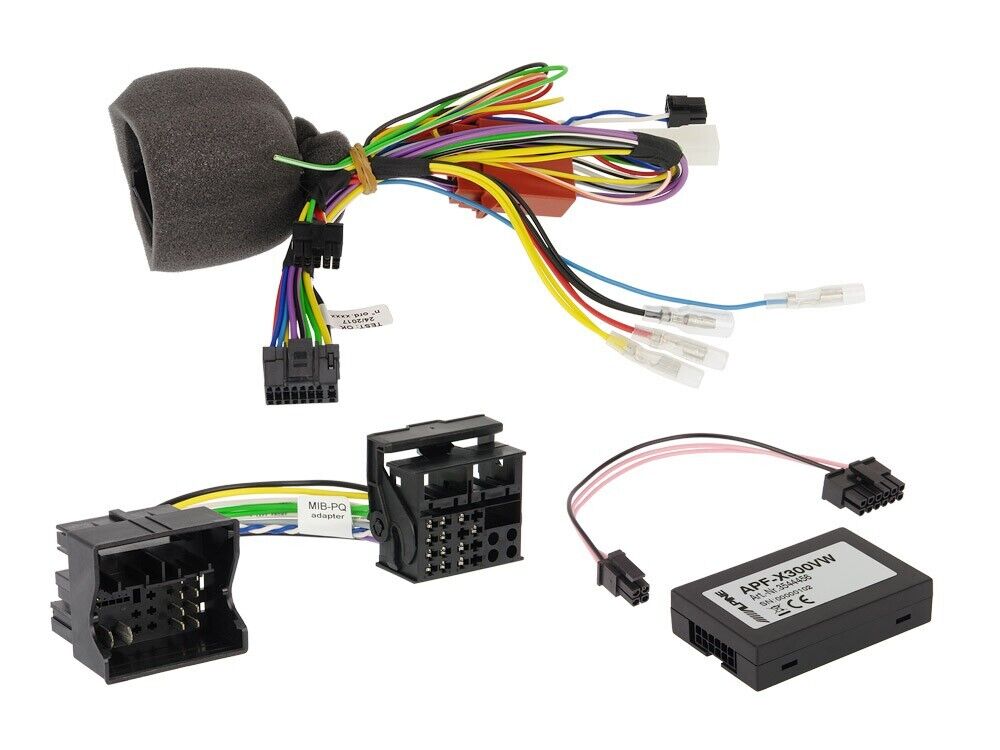

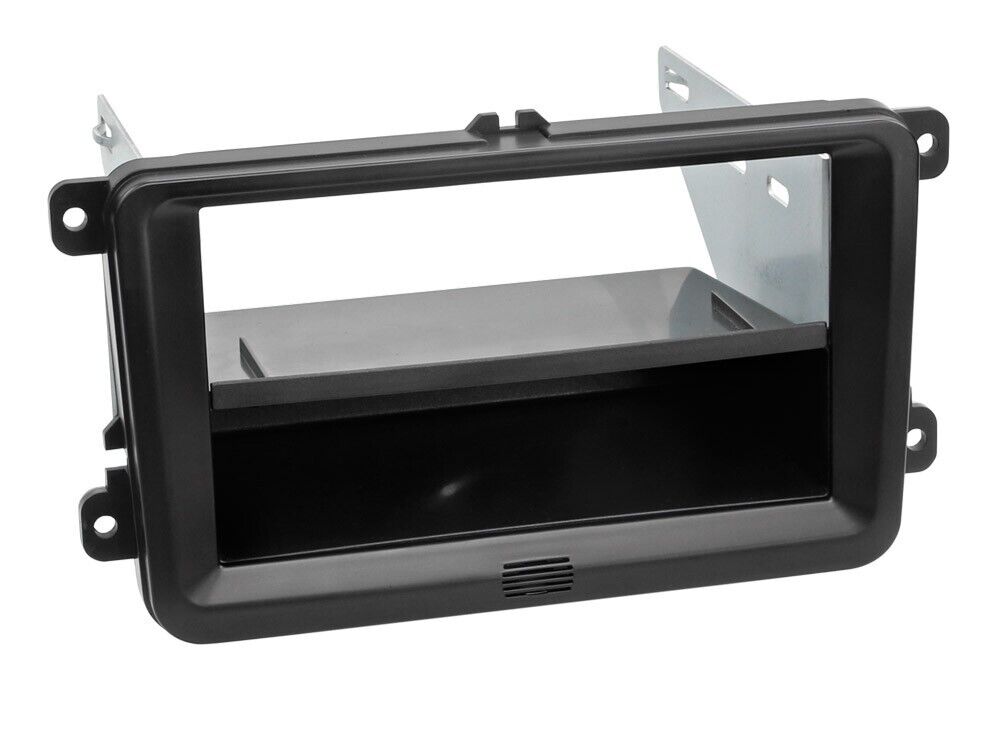

The iLX-F115T6 includes a custom-fit 1DIN frame, wiring harness with CAN interface and an antenna adapter. The CAN interface allows usage of the steering wheel remote control buttons with Halo11.

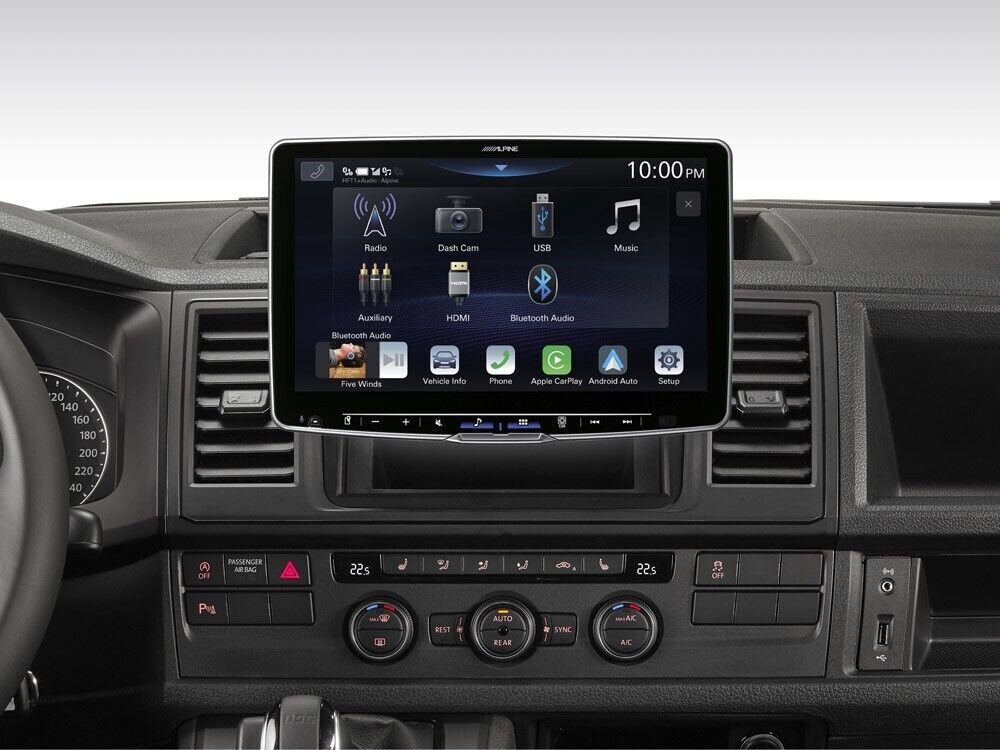

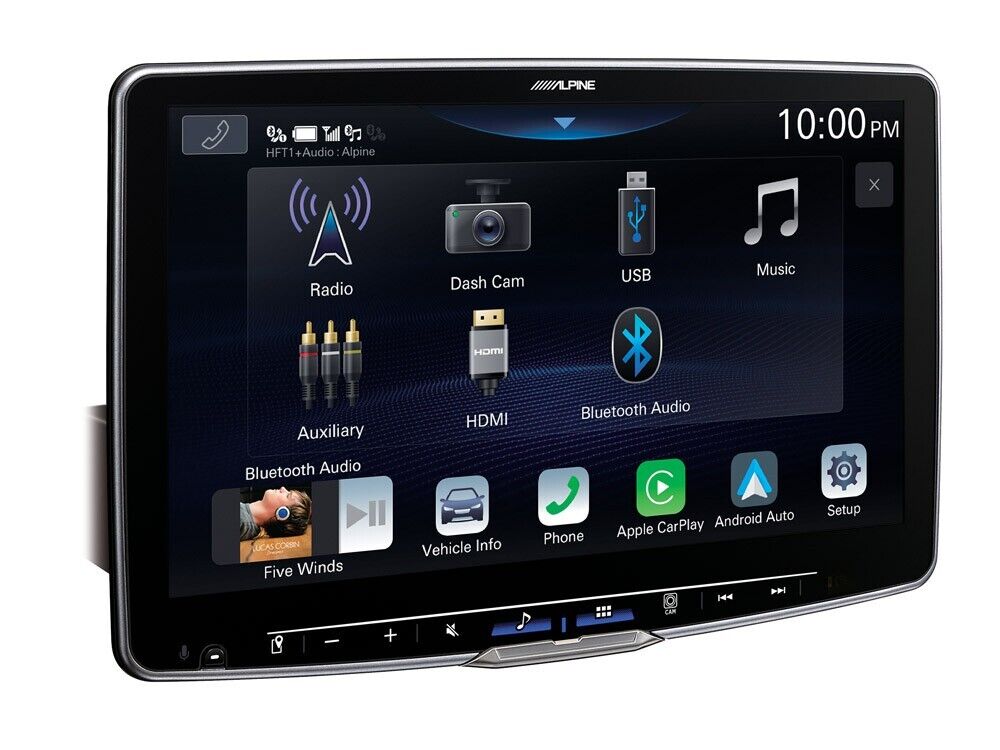

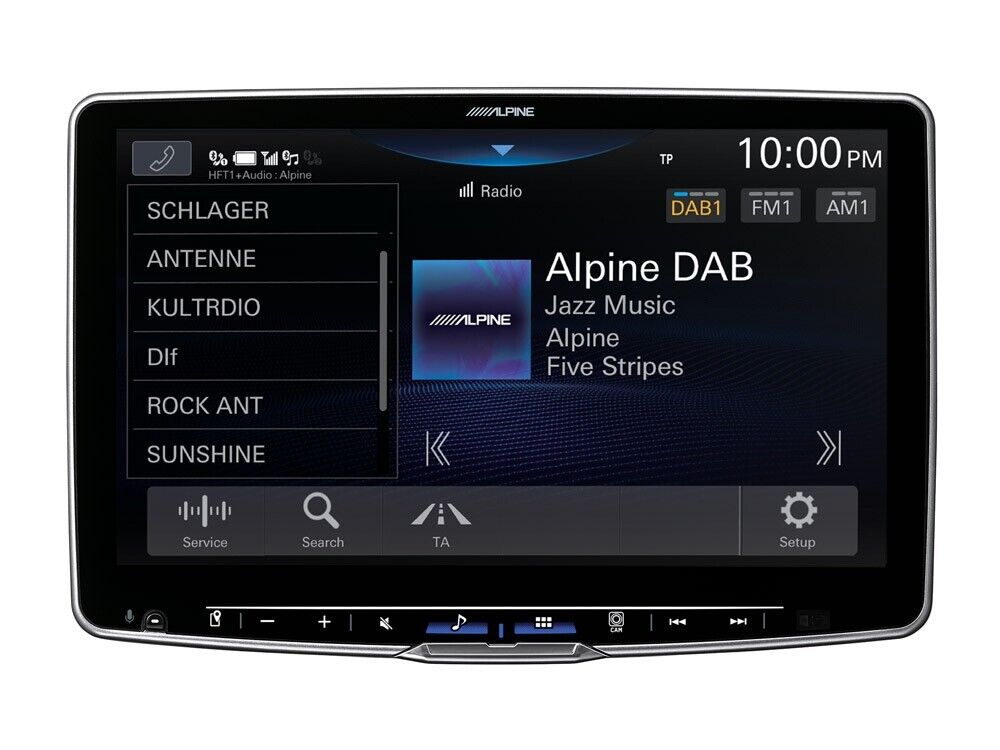

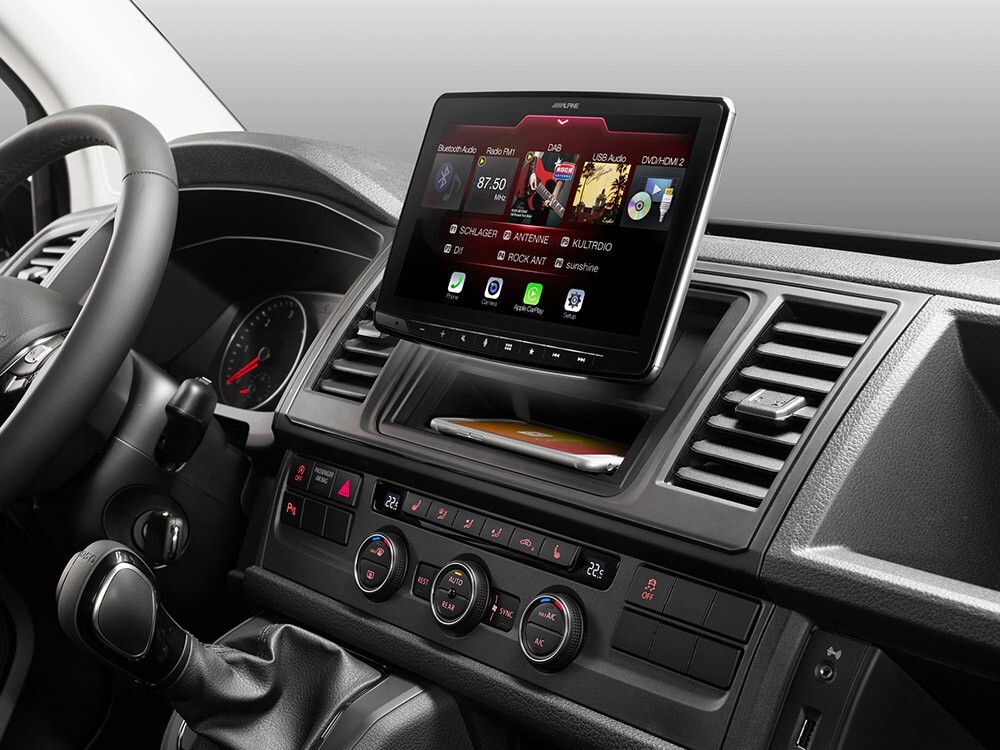

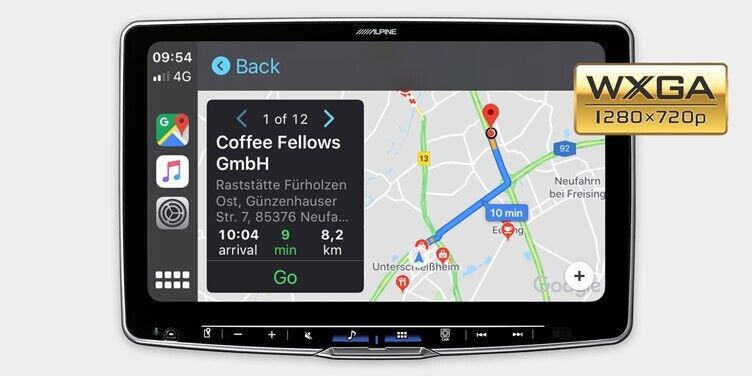

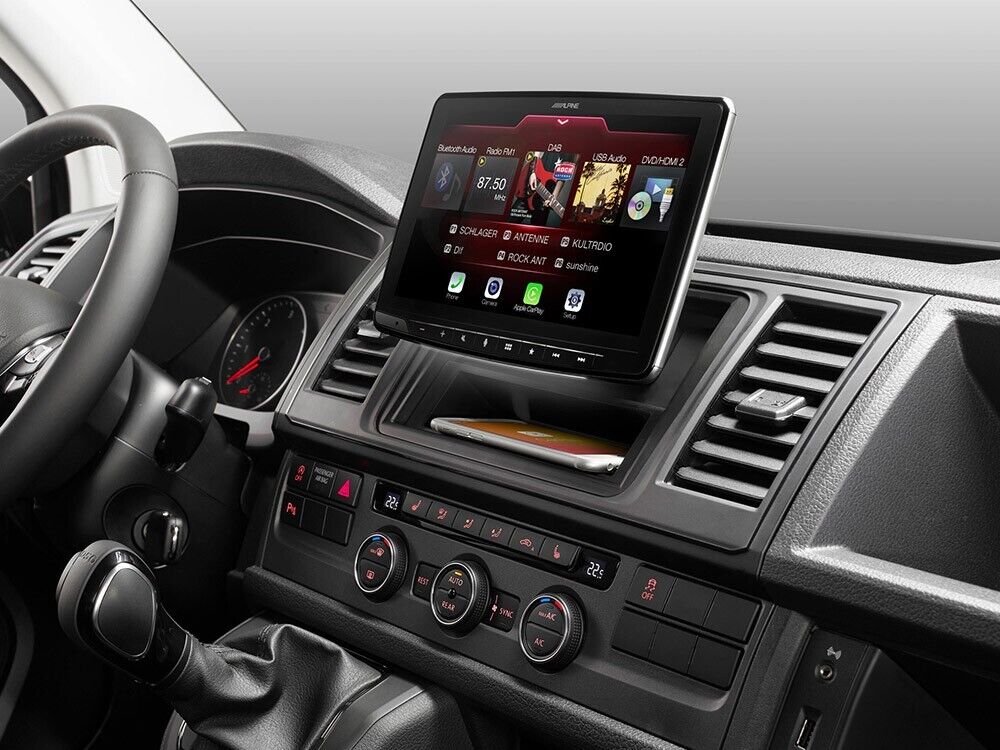

The super-large, 11-inch WXGA touch-screen display features a resolution of 1280 x 720p and includes over 2.7 million pixel elements - making icons, menus and visual content extremely crisp and vibrant in your dash. The screen is attached to an adjustable mount connected to the vehicle's radio dock and leaves a free 1DIN pocket below for storing smaller items such as cigarettes, etc.

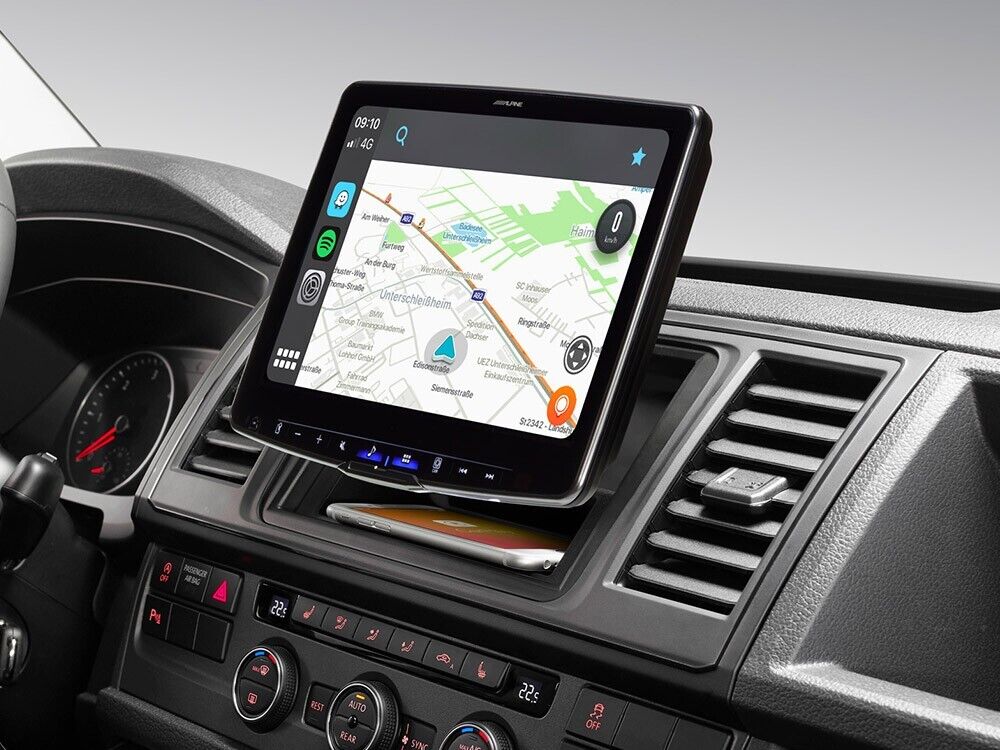

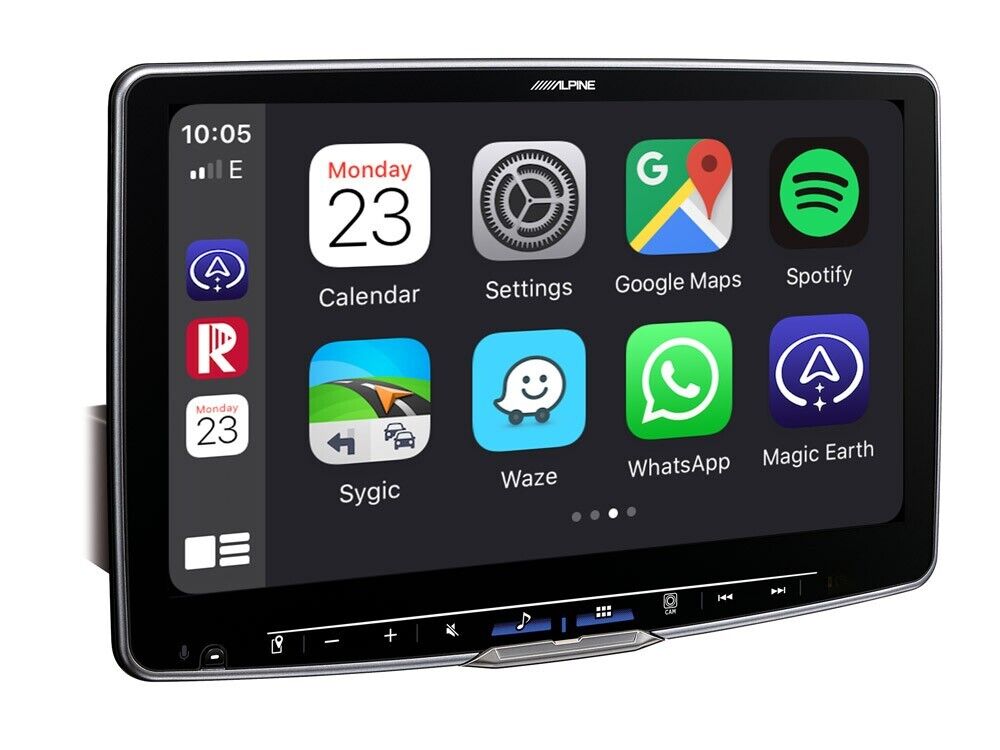

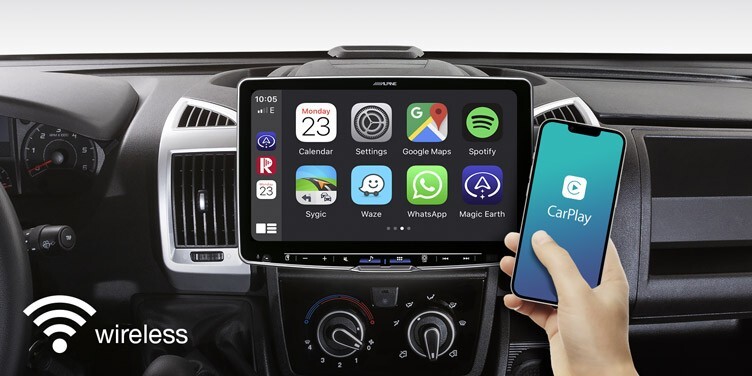

The iLX-F115T6 "Works with Apple CarPlay" wirelessly and lets iPhone users make and receive calls, access and write text messages, play music, and get direction in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touchscreen or the mic button to activate Siri voice control. Due to the WiFi connection, you can keep your iPhone in your pocket and do not need to plug it in all the time (except for charging).

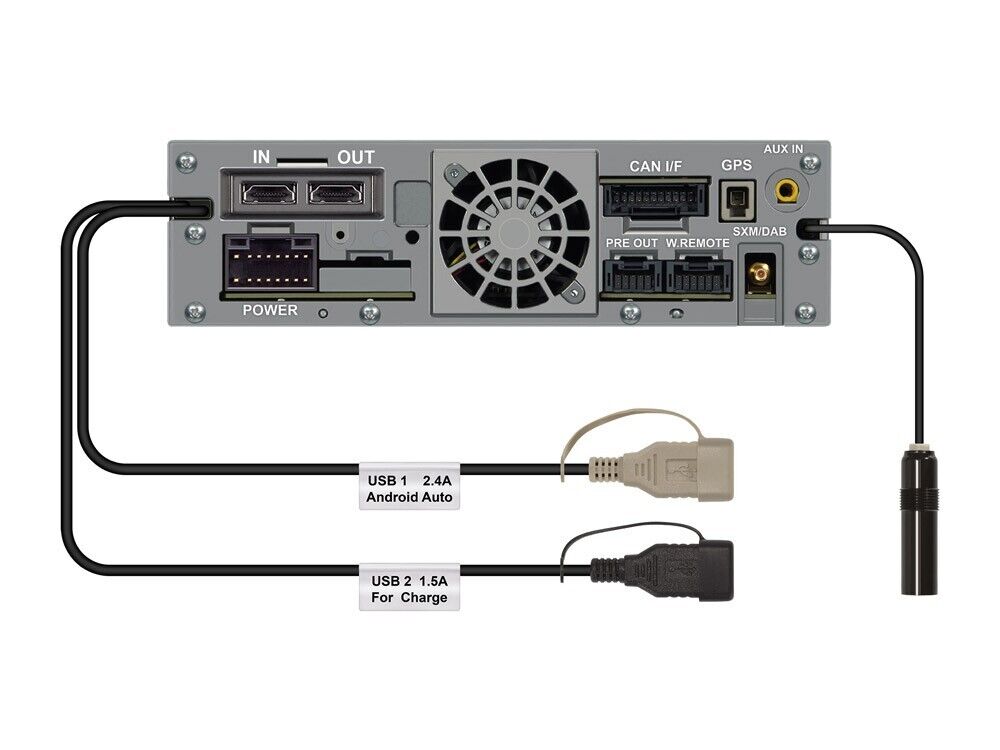

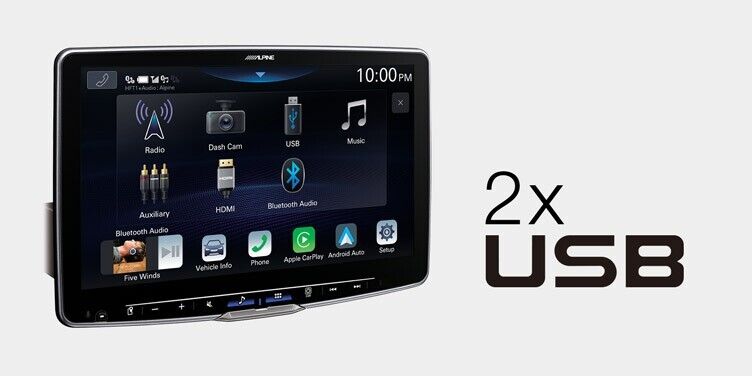

While the Alpine Halo9 is mech-less (no built-in CD/DVD drive), you still have plenty of entertainment options. 2 USB ports located on the back of the unit allow you for example to connect one mobile device for charging, while the other USB port is used to plug in a USB stick or hard drive to access audio and video files.

With five vertical adjustments, free angle selection, and two separate depths, you can position the floating display in the most optimal position, so you still have access to your dash controls and air vents. The user now can freely adjust the display angle at any time, to achieve best visibility and to avoid sunlight glare.

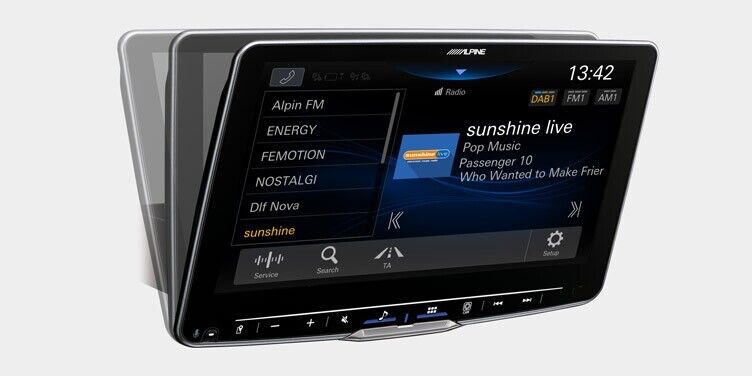

You can adjust the iLX-F115T6's display angle from +45 degrees to -20 degrees to match a wide range of dashboard angle. You can freely adjust the display angle at any time, to achieve best visibility and to avoid sunlight glare.

The display height can be adjusted +/- 3cm from the center position. This allows fully standing or hanging display configurations as well as everything in between. You can also adjust the distance of the display to your dash in a 20mm range. After the display height and distance to the dash are selected, everything gets locked into place to be very solid.

The iLX-F115T6 is the world's first aftermarket Head Unit featuring a built-in 4x 50 Watts Class-D amplifier - allowing excellent, high-end sound reproduction with highly reduced noise or phase shift. The key benefit of Class-D amplification technology is its high efficiency of about 90%, compared to 50 - 70% of Class AB amplifiers. New high-speed fans with internal heat sinks keep your Alpine Halo11 cool - and the music playing.

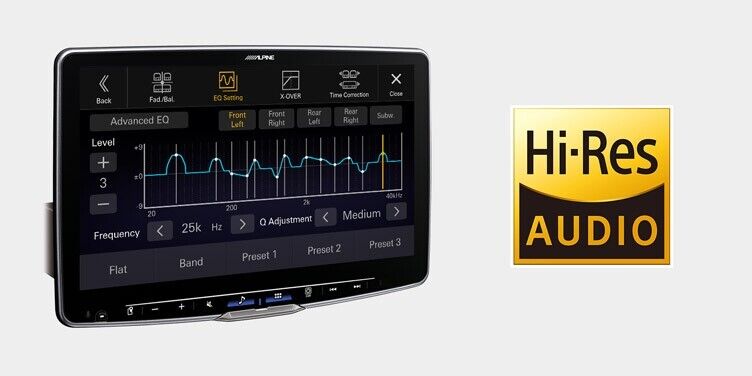

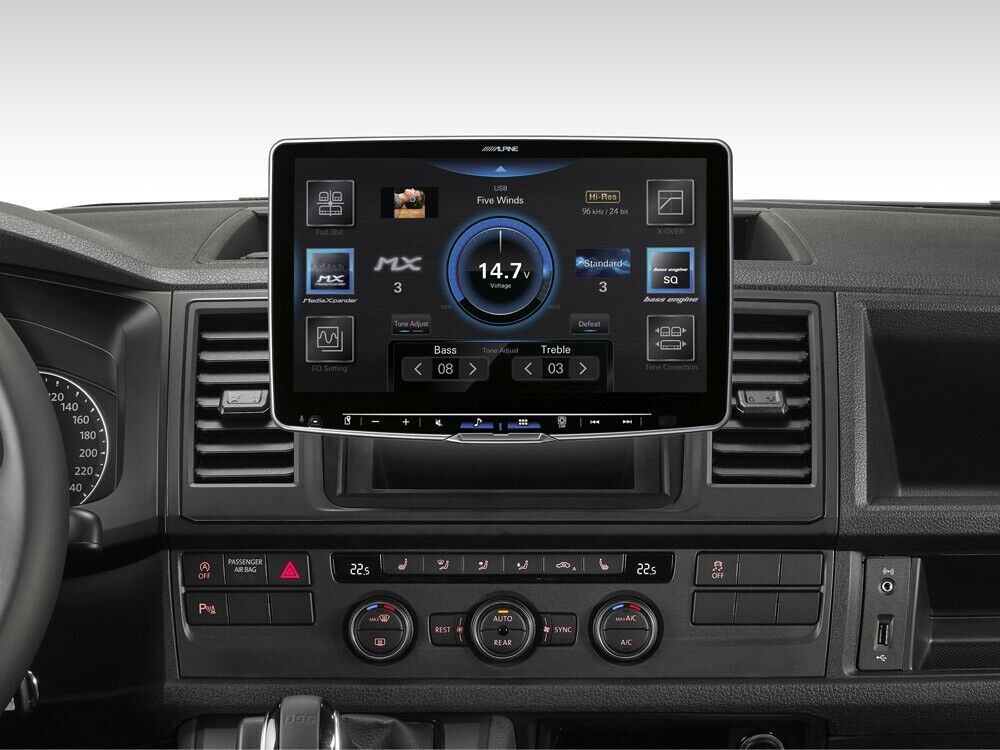

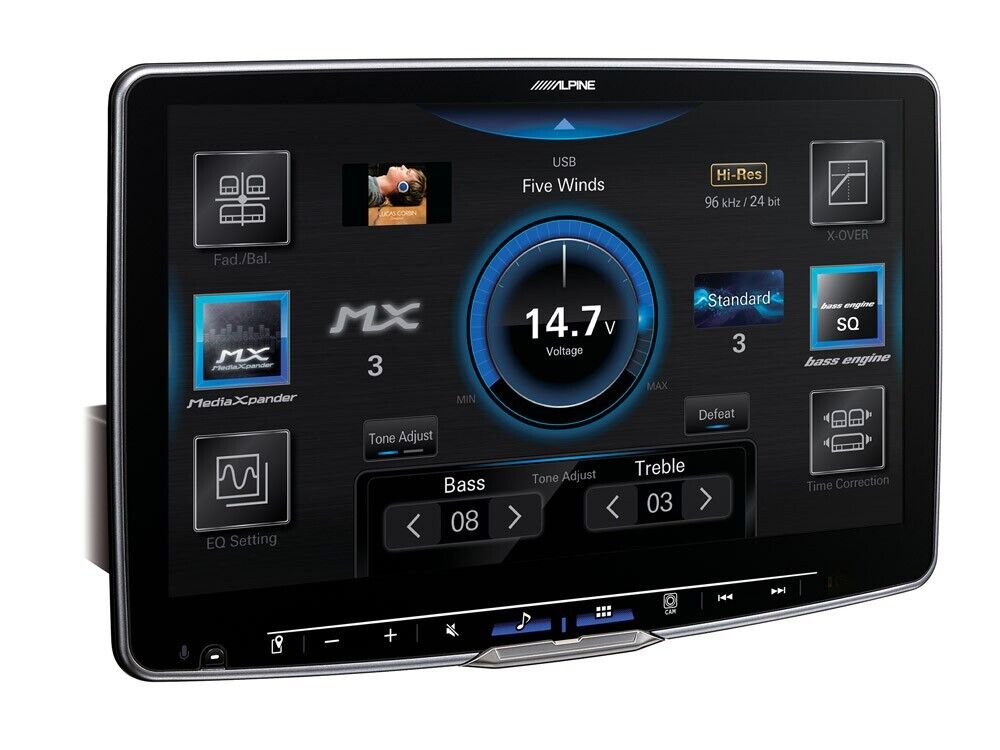

Featuring a 56-band Parametric EQ in the advanced mode, a 2-way digital X-over, 6-channel digital time correction and several Bass Engine SQ and MediaXpander sound tuning options, you have excellent tools at your disposal to tune your Alpine Halo11 and the attached amp / speaker system to perfection. But we didn't stop there: The Alpine Halo11 is Hi-Res Audio certified and can decode and playback Hi-Res Audio files up to 96kHz / 1.536 kbps from USB sources in uncompressed supported formats such as FLAC, WAV and APE.

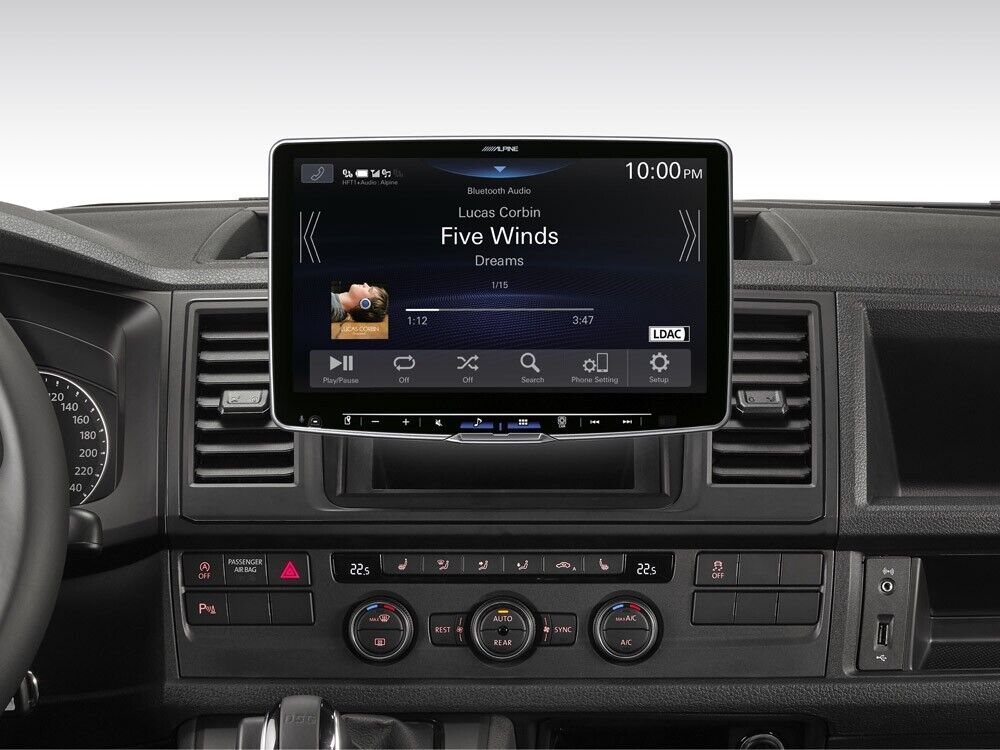

The all new DAB/ radio tuner allows DAB - FM switching and lets you enjoy seamless radio reception without interruptions. Next the increased USB video playback formats (MP4, MOV, FLV, MKV), the Alpine Halo9 features many additional entertainment options: the built-in Bluetooth module allows audio streaming from your phone and the HDMI input enables the connection of an external video playback device. You can of course use Android Auto with any compatible smartphone running Android (wired connection).

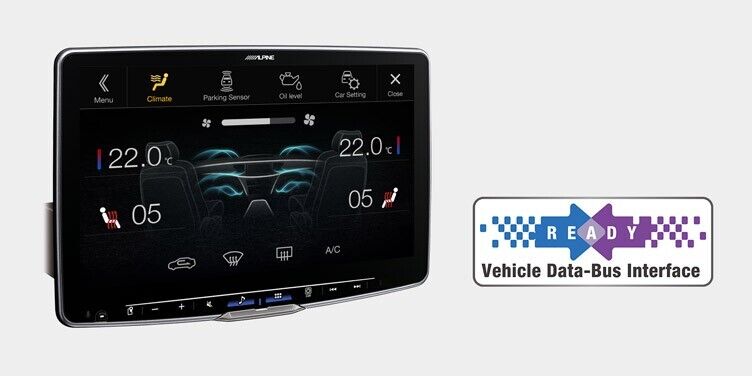

If your car is equipped with parking sensors and, you can continue to use these convenient functions with your iLX-F905D. Alpine offers many vehicle data-bus interfaces to connect your Alpine Halo9 to your vehicle's data-bus system. This enables compatibility with your vehicle's steering wheel control buttons, display of air conditioning settings as well parking sensor display.

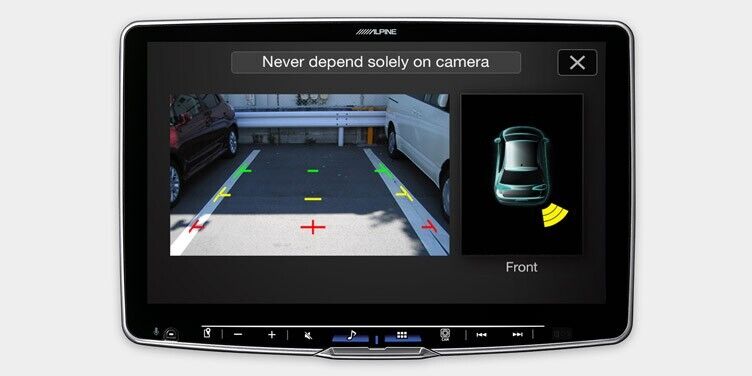

A rear view camera is a great way to make reversing safer. The camera image automatically comes on when you shift into reverse and distance guides that can be adjusted to match your car size will appear on the screen to help you safely park your car. Alpine offers a wide variety of front and rear facing cameras, including multi-view cameras with selectable viewing angles. You can even view the camera screen and parking sensor screen simultaneously, if your car supports it.

The small display in the instrument cluster is also connected to the Alpine system and can display radio station names, song titles and artist information, caller names and much more.

The separately available RUE-BK01 control knob connects wirelessly to the Alpine Halo9 and can be installed to the left or right side of the touch-screen. Alternatively you can also place the control knob anywhere else in the vehicle with a simple custom installation. Turning the knob will adjust the head unit's volume output, while pushing it activates the rear view camera on the screen.

Note: this control knob has no function if wireless Apple CarPlay is active.

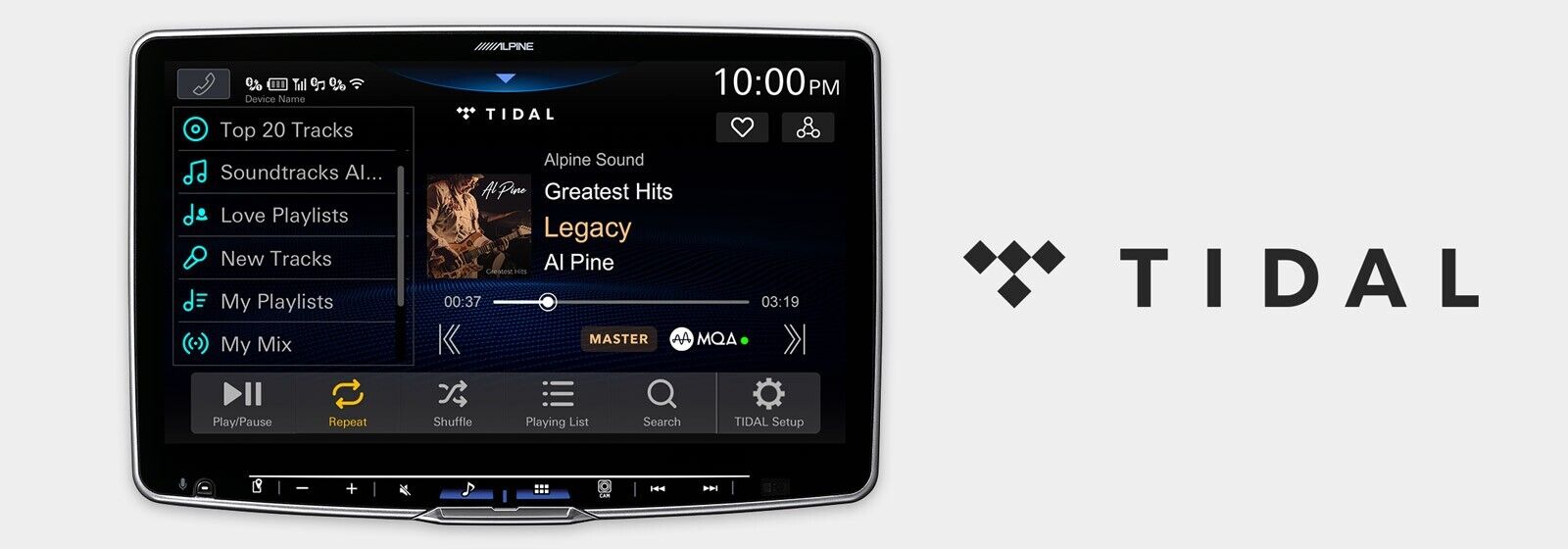

With the integrated TIDAL app you can access the High-Res Audio streaming experience with TIDAL, enjoying its catalog of over 90 million songs and 450,000 videos. TIDAL HiFi and HiFi Plus members get lossless audio and high-fidelity music options for superior sound quality that elevates the music experience. TIDAL Masters, delivered in partnership with Master Quality Authenticated (MQA), allows HiFi Plus Members to listen to music exactly as the artist intended the track to sound. With thousands of expertly curated playlists customers will be able to listen to all genres and discover new artists via TIDAL Rising.

Preset Stations (FM: 3x12 / DAB: 3x12 / AM: 2x12)

Memory: Auto Memory

Seek Mode: Local, DX, Pre-Set, Service

RDS Functions: PI, PS, AF, TA, TP, PTY, NEWS, RADIO TEXT

DAB+/DMB Supported

DAB+ Slideshow Service

DLS (Dynamic Label Service)

DAB Service Following

RDS Fallback (where available)

Auto Ensemble/Service Memory

Service Search Function

PTY Search Function

Alphabet Search Function

Built-in BLUETOOTH® Module V4.2

HFP (Hands-Free Profile) Compatible

A2DP (Advanced Audio Distribution Profile) Compatible

AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible

Phone Book Synchronization

Speed Dial: 4 Preset Memory (per phone)

Call History Display: Outgoing Calls / Incoming Calls / Missed Calls

Redial Function

Speech Volume Level Adjustment: (Outgoing and Incoming)

24 Menu Languages

Microphone Included

Compatible with iPhones featuring a lightning connector

Various search functions and Album Artwork Display

Battery Charging

Connectivity

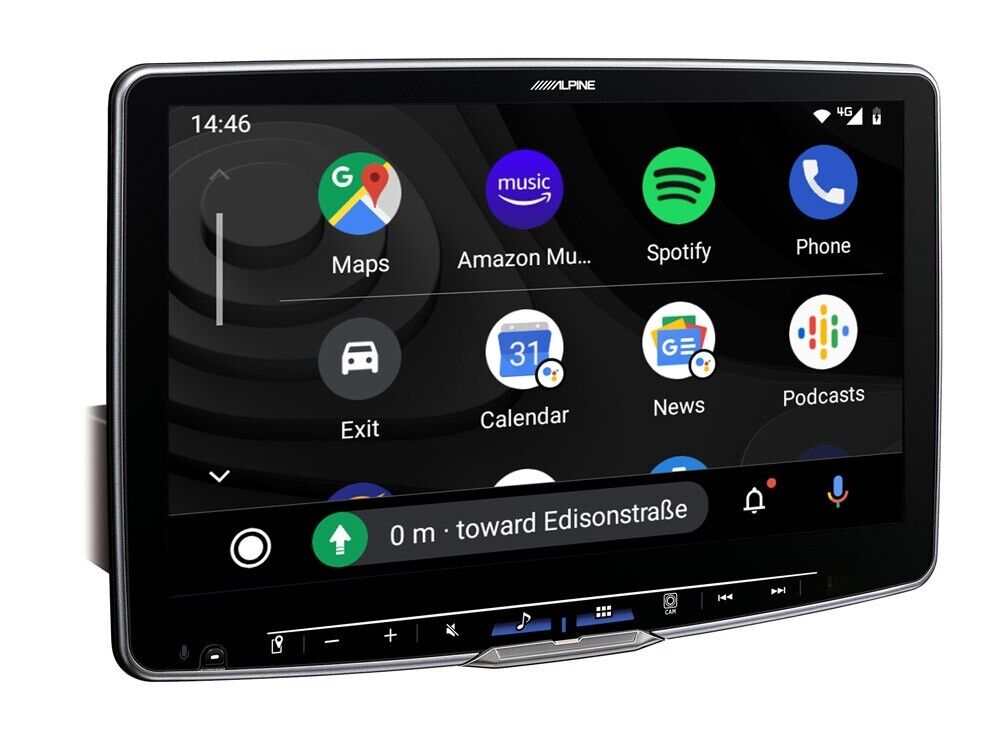

Works with Android Auto (Requires Android Auto enabled smartphone, wired connection)
