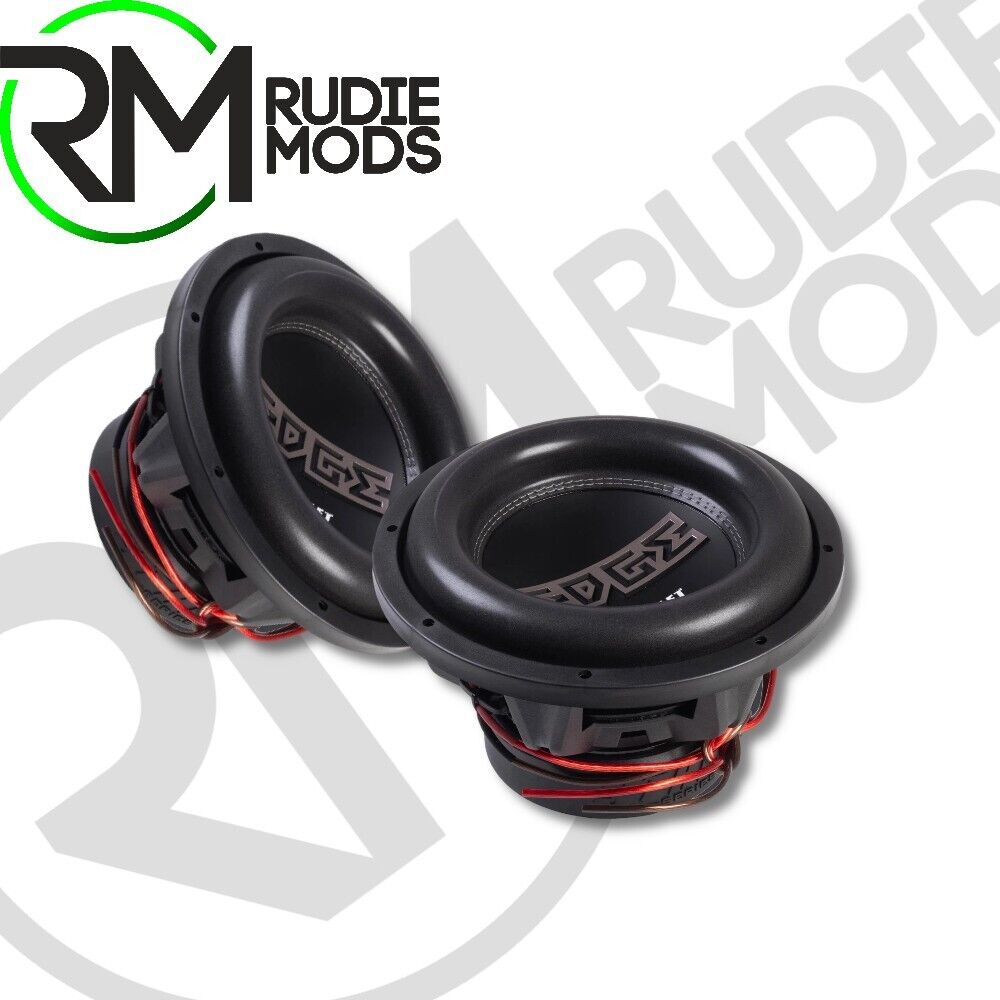

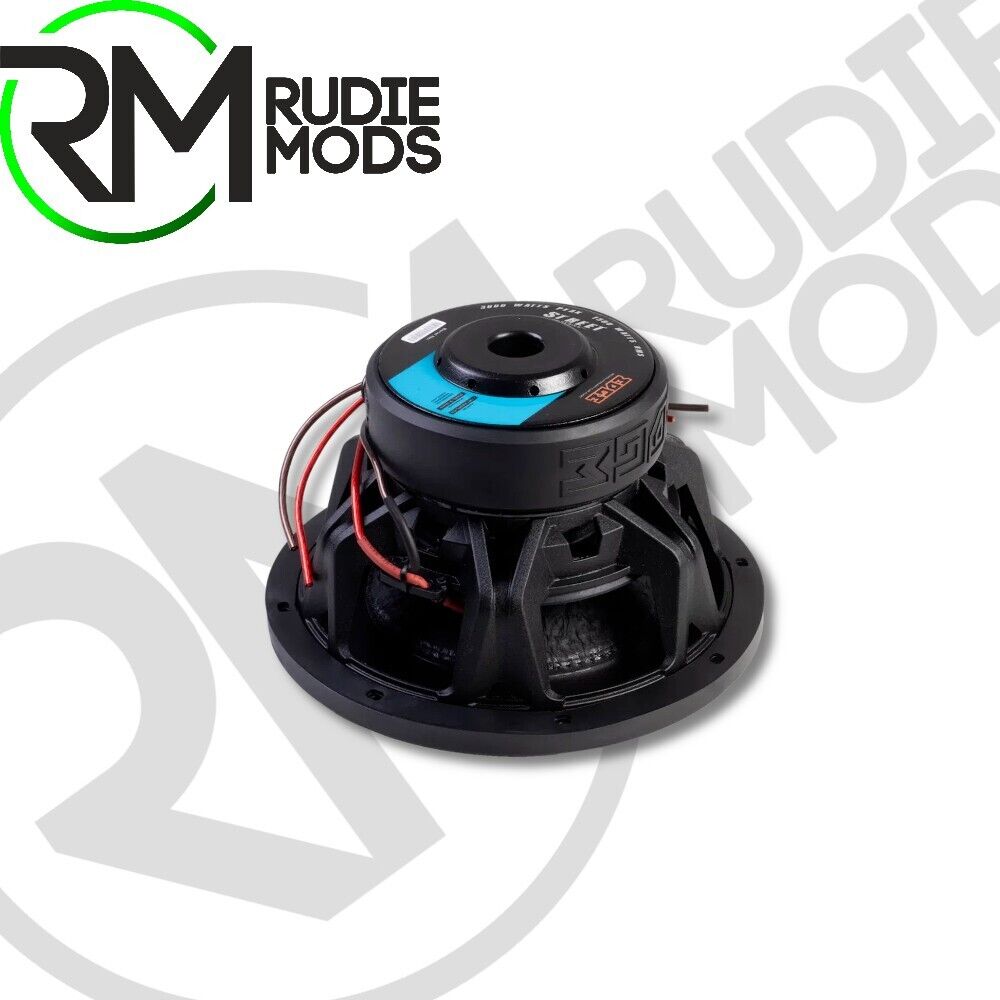

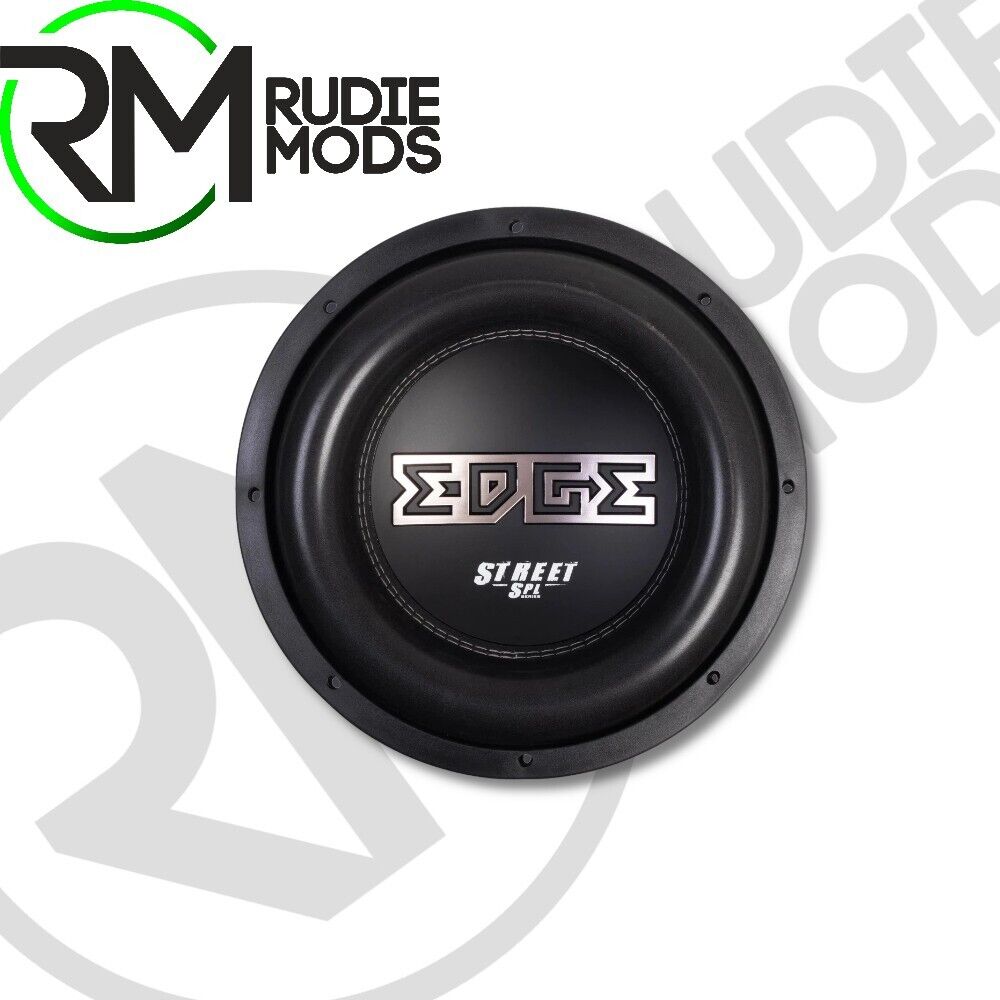

ALL NEW PAIR Edge Car Audio 12" 1500W RMS SPL Subwoofers EDP122SPL-E3

The Edge Car Audio EDP122SPL-E3 is our best-selling 12" (30cm) subwoofer in a refreshed version. Same reliable performance and sound pressure level. Only the design of the cone and dust cap has been updated, otherwise the parameters are identical. Super robust subwoofer for really high sound pressure levels. Thrives in a 70 liter box with a low tuning around 35 Hz.

12" (30cm) subwoofer

RMS power: 1500W

SPL power: 4500 W

Minimum input (RMS): 750 W

Ultra-wide roll foam surround

12" (323mm) subwoofer

75mm voice coil

132oz double stacked magnet

Thiel Small Parameters

SPL (sensitivity), dB 83.7

FS (resonant frequency), Hz 22

Qts (total quality factor) 0.53

Vas (equivalent volume), l 17.2

BL (electromechanical coupling coefficient), T m 19.198

Dimensions

Overall diameter 322 mm

Speaker cut-out 283 mm

Installation depth 198 mm

Magnet diameter 226 mm

Weight: 12.50 kg

Recommended enclosure

70 liters net volume

140cm² port cross-section with 50cm length

Tuning: 35Hz
