Airtec Front Mount Intercooler FMIC to fit Ford Focus St Mk4

AIRTEC MOTORSPORT FRONT MOUNT INTERCOOLER FOR FORD FOCUS ST MK4

AIRTEC Motorsport Front Mount Intercooler Upgrade for Focus ST Mk4

AIRTEC part number: ATINTFO55

AIRTEC Motorsport Front Mount Intercooler Upgrade for Focus ST Mk4

Developed and manufactured at AIRTEC HQ in the UK, we're proud to launch our front mount intercooler upgrade suitable for modified Mk4 Focus ST  models for track or fast road use.

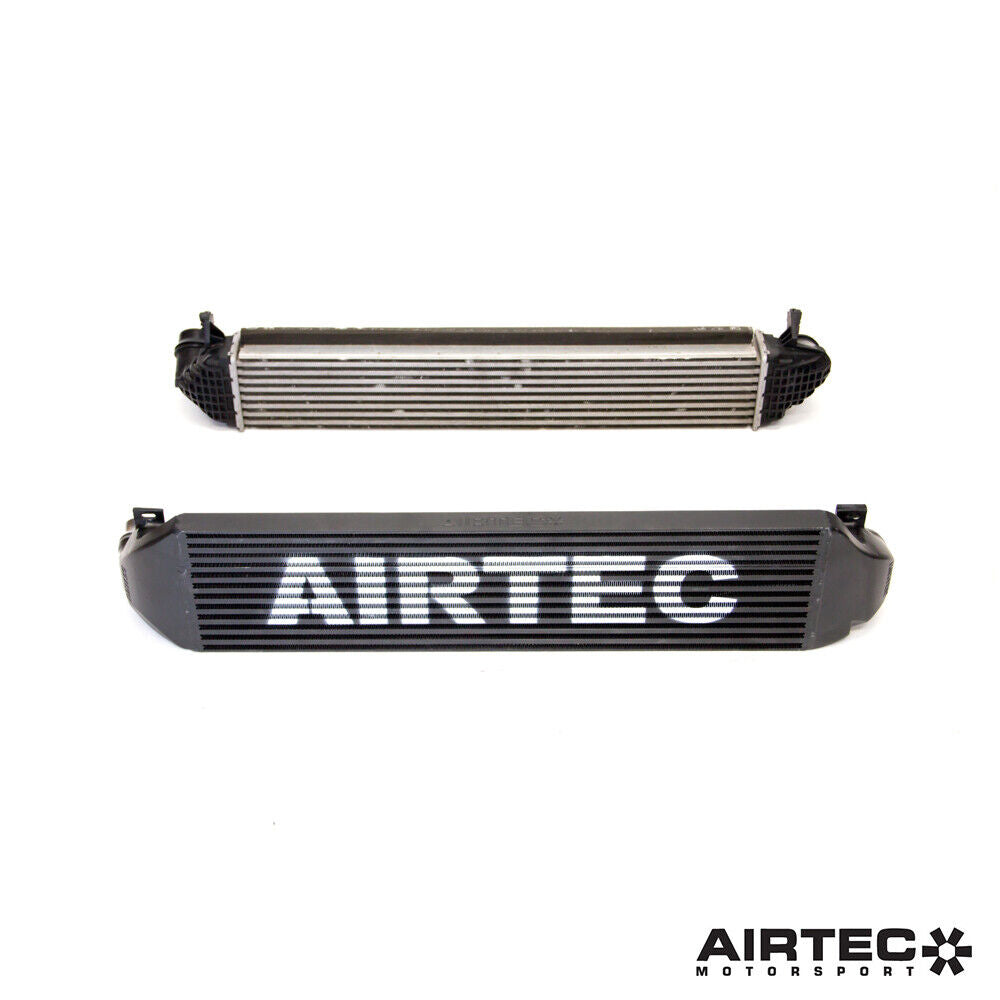

With limited space available behind the front bumper arrangement of the Mk4 Focus model, our solution to increasing the intercooler's size and performance is based upon our stepped-core design to fully utilise the area. The core steps from 85mm to 35mm and in doing so offers a huge increase in overall capacity in comparison to the original intercooler. It also offers a significant increase in frontal area over standard, which allows it to make the very most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks and an internal air diverter to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over the standard item.

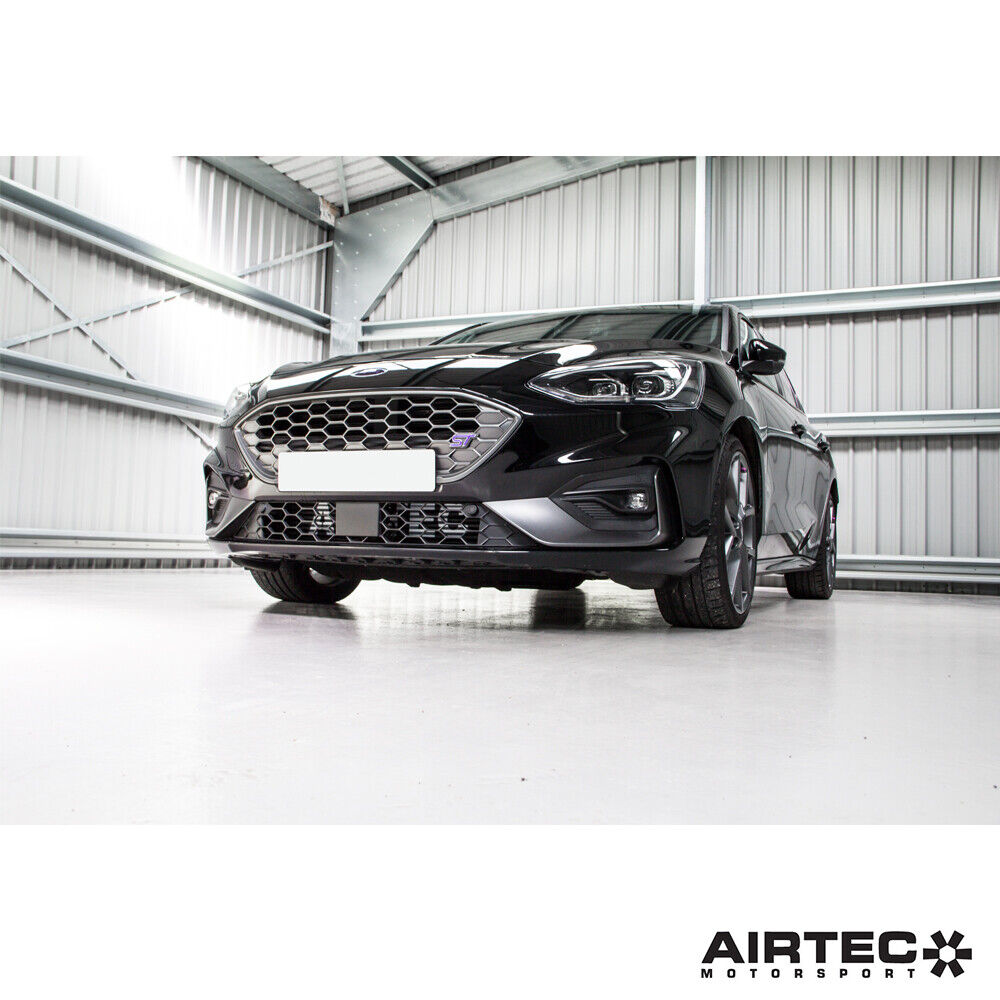

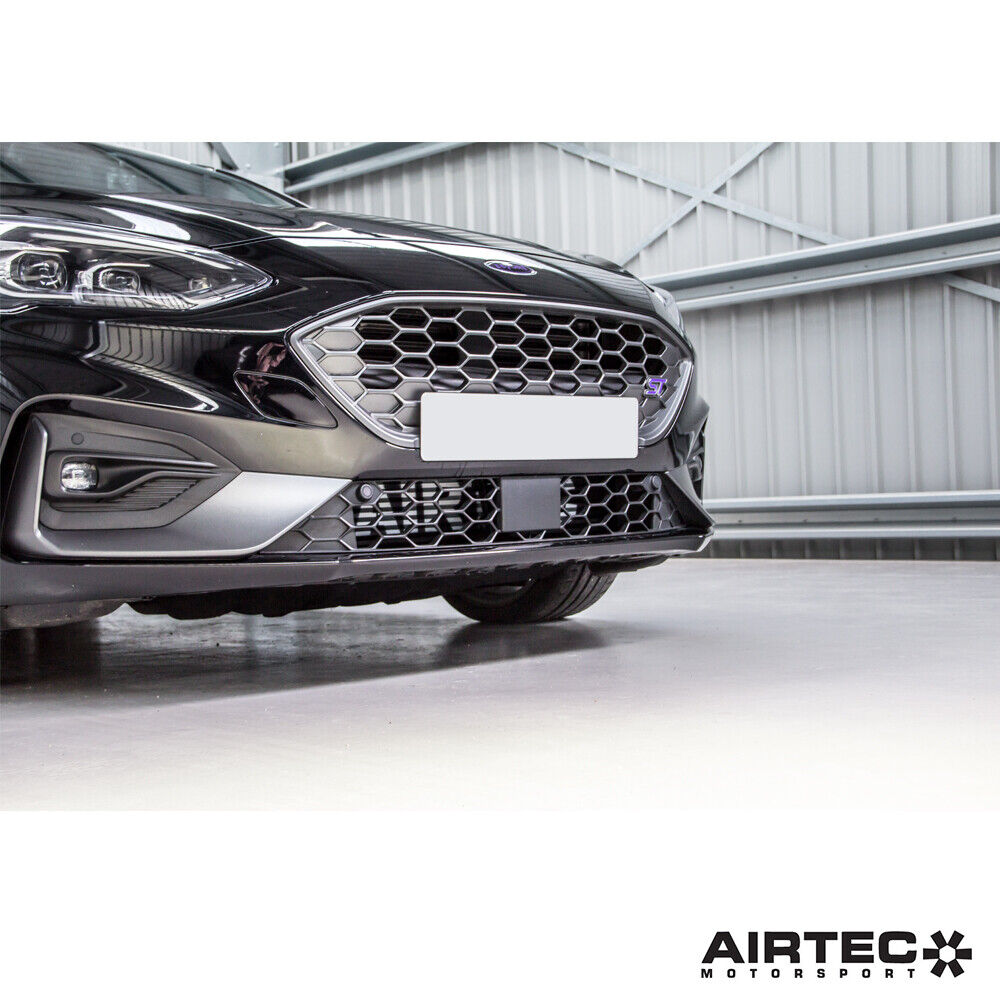

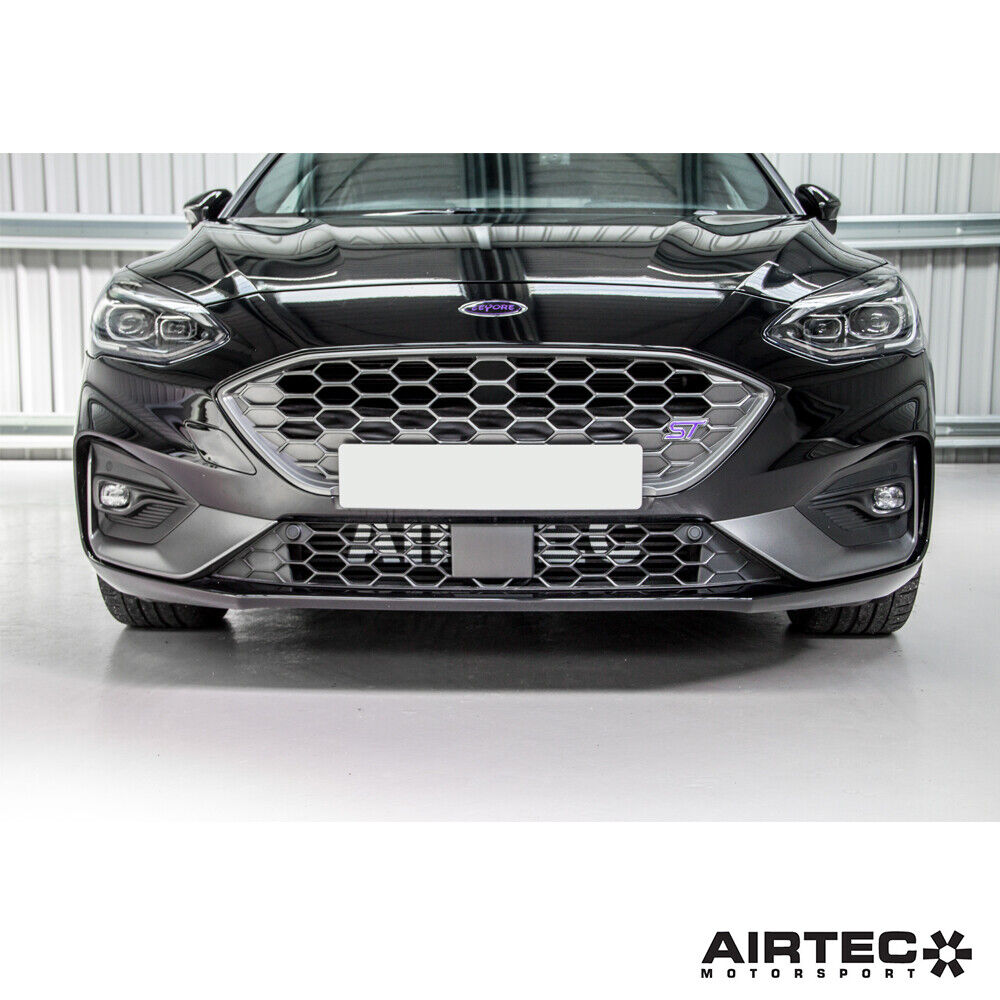

Despite this huge improvement, the kit fits neatly behind the original bumper and requires only minor trimming, and can be reverted back to standard with no issues. It attaches to the original boost pipes and the kit comes complete with fittings that allow the intercooler to simply and easily attach in place using our own design of billet mountings. The comprehensive fitting kit includes all the correct fixtures and fittings, as well as step-by-step instructions.

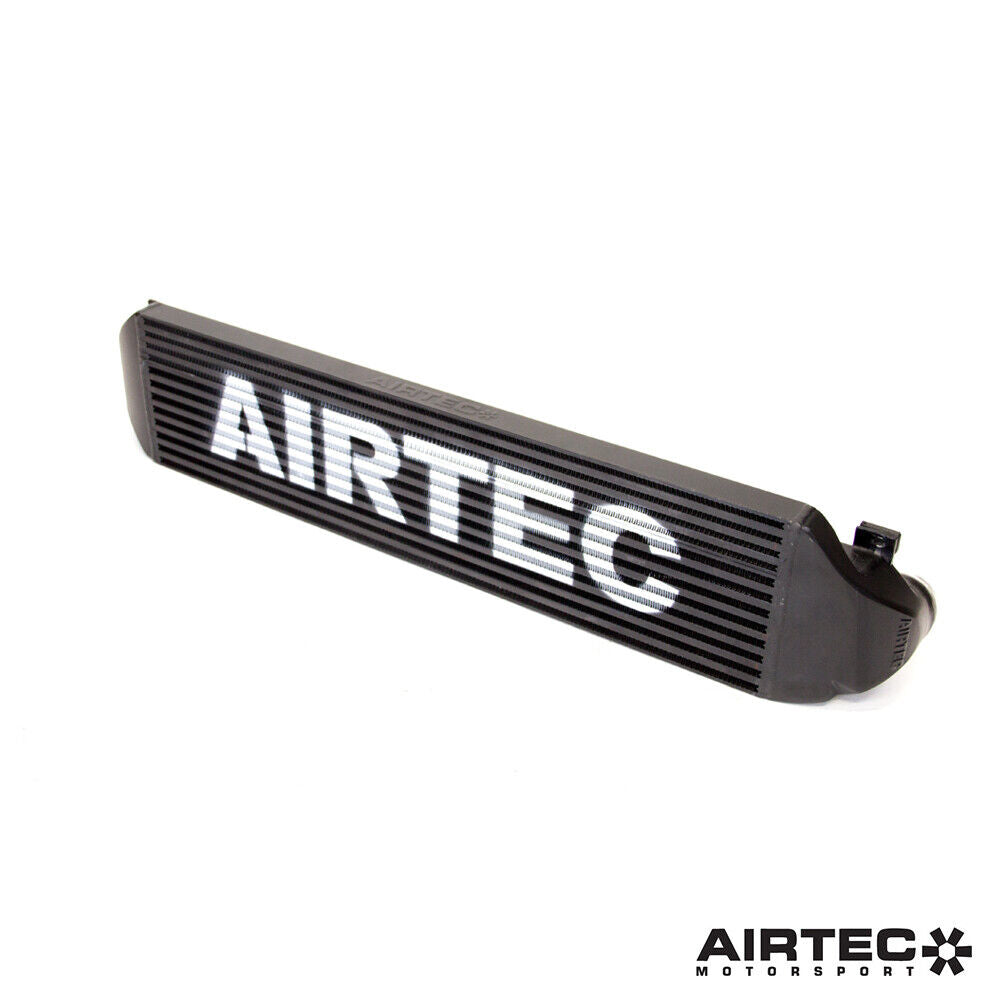

The intercooler is available in a Pro-Series Black finish and with or without the AIRTEC logo

Specification:

Height - 185mm

Depth - 85mm/35mm step

Width - 730mm

Please advise us in "notes to seller" what colour you would like the airtec logo sprayed in.  Failure to do so may delay your order being shipped.

Please add a note to what options you would like

Airtec Logo

Plain / Black / White / Blue / Red / Yellow / Orange / Green / Grey / Pink / Purple
