12" Car Subwoofer with Box Hertz Mille Pro MPS 300 S4 500W RMS 4 Ohm Shallow fit

12" Car Subwoofer Hertz Mille Pro MPS 300 S4 500W RMS 4Ohm Shallow fit with Custom down Firing enclosure

300 (12) mm (in.) ' 88 (3.46) mm (in.) ' Subwoofers ' 1000 W ' 4 Ohm ' Single Voice Coil

MPS 300 S4 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

MPS 300 is optimized to work in ultra-compact sealed boxesstarting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.

Mille PRO subwoofer has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

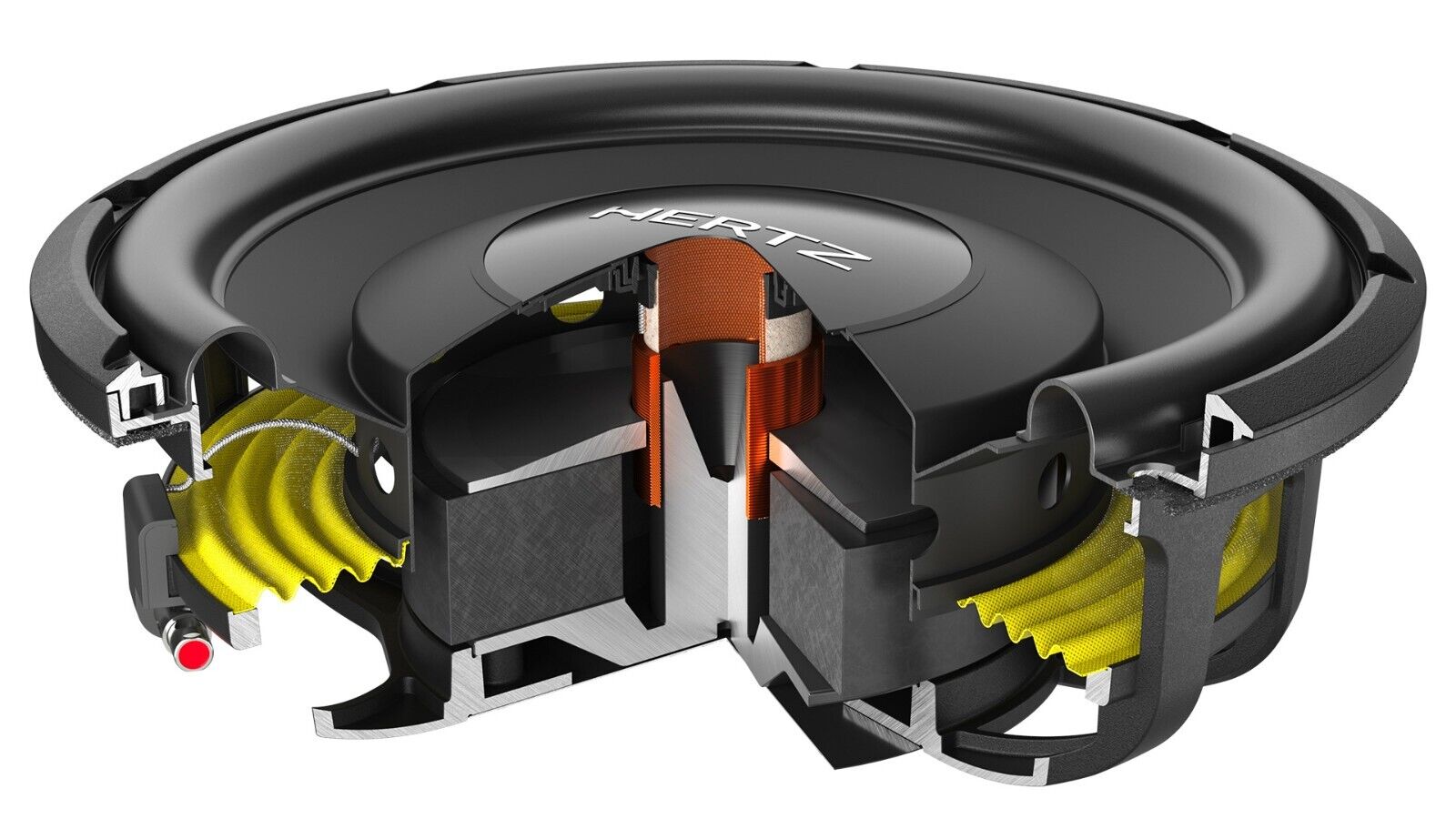

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for the spider and coil. This solution has allowed the movement of the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

Technical Specs

Size mm (in.)300 (12)

Power Handling - Continuous W500

Power Handling - Peak W1000

Impedance Ohm4

Depth mm (in.)88 (3.46)

Voice Coil Typesingle

No Filter ComponentSubwoofers

Voice Coil Ø38 (1.5)

Frequency Response Hz25 - 400

Magnet size D x d x h mm (in.)156 x 60 x 36 (6.14 x 2.36 x 1.42)

Weight of one component kg (lb.)6,64 (14.64)

MagnetHigh density flux ferrite

ConePolypropylene

Xmech mm (in.)20 (0.79)

Box Dimensions - 62.3cm by 40.3cm by 14cm

1. Ultra-shallow overall depth

2. 500W continuous power handling

3. Optimized for extremely-compact sealed enclosure 20-24L (0.7-0.8CF)

4. Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations

5. Unrivalled mechanical excursion, +20% over traditional designs

6. Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity

7. Non-vented rear design allows reduced enclosure depth

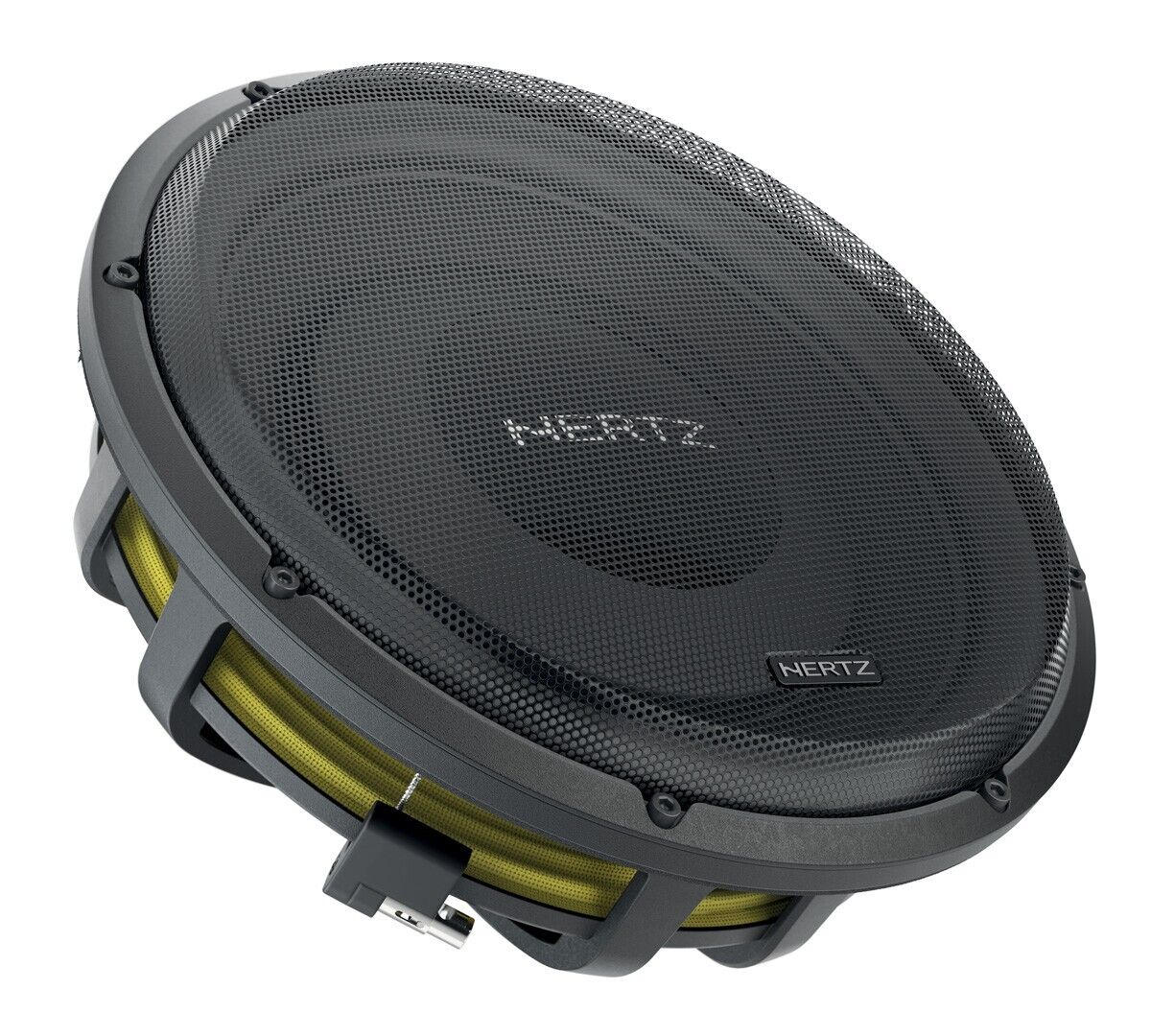

8. Robust screw-less mesh grille included with black screws provided

9. Die-cast aluminum frame

10. Solid horizontal 8AWG spring-loaded terminals

11. EID: Scan, Discover, Identify

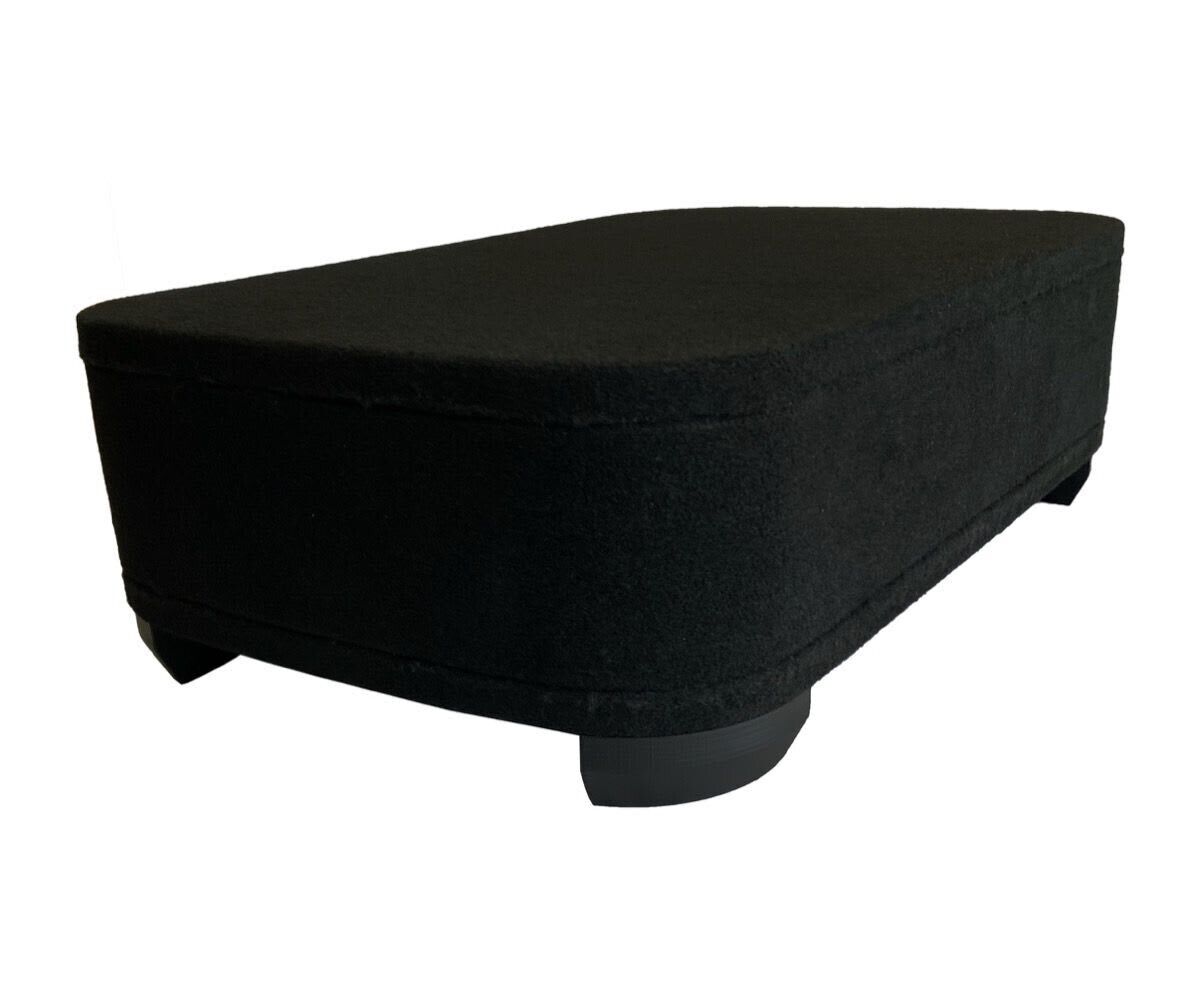

Q+ MPSBX 300

Compact enclosure for Hertz Mille Pro MPS 300 subwoofer

Super sturdy, carpeted MDF enclosure for Hertz Mille Pro MPS 300 12" subwoofer - Feet available as optional accessory
